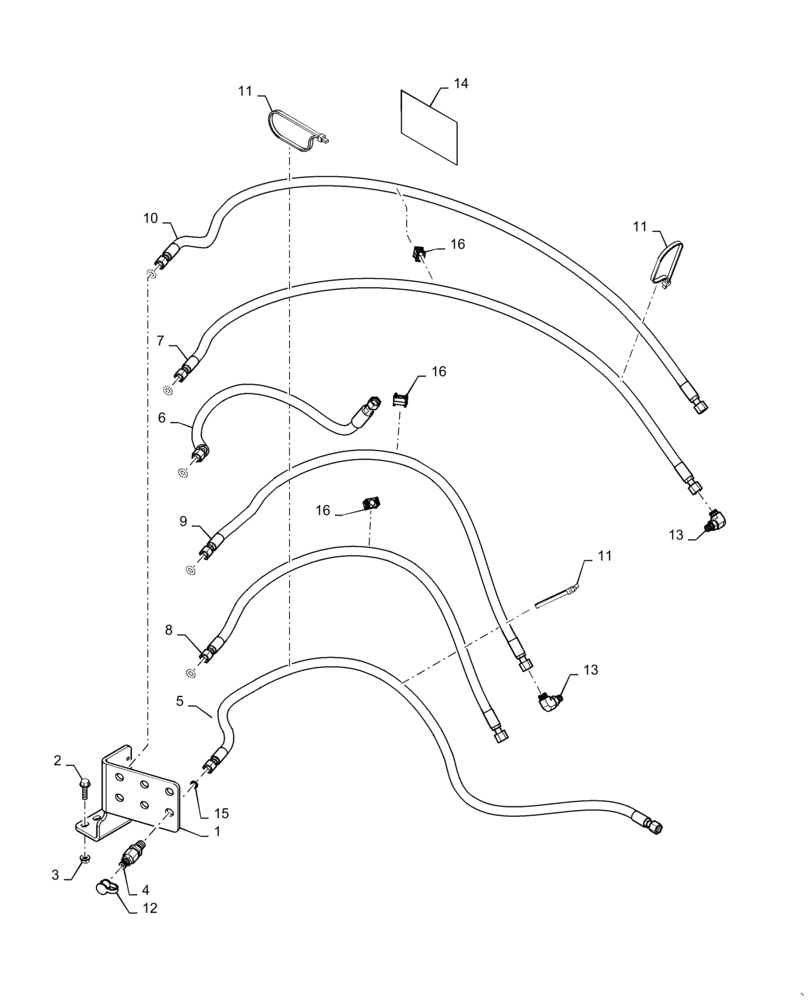

Запчасти Case 750M WT (35.525.010) - DIAGNOSTIC HOSES (35) - HYDRAULIC SYSTEMS

1

47543180

MOUNTING PLATE

1шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

3

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

4

47376296

NIPPLE

6шт.

5

47544588

HYDRAULIC HOSE

1шт.

6

47543581

HYDRAULIC HOSE

1шт.

7

47766667

HYDRAULIC HOSE

1шт.

8

47766663

HYDRAULIC HOSE

1шт.

9

47766661

HYDRAULIC HOSE

1шт.

10

47766659

HYDRAULIC HOSE

1шт.

11

87438046

CABLE TIE,375.9 mm L x 8mm W

7шт.

12

H434163

DUST CAP

6шт.

13

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

5шт.

14

87435632

DECAL

1шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

16

86982400

SPACER

3шт.
