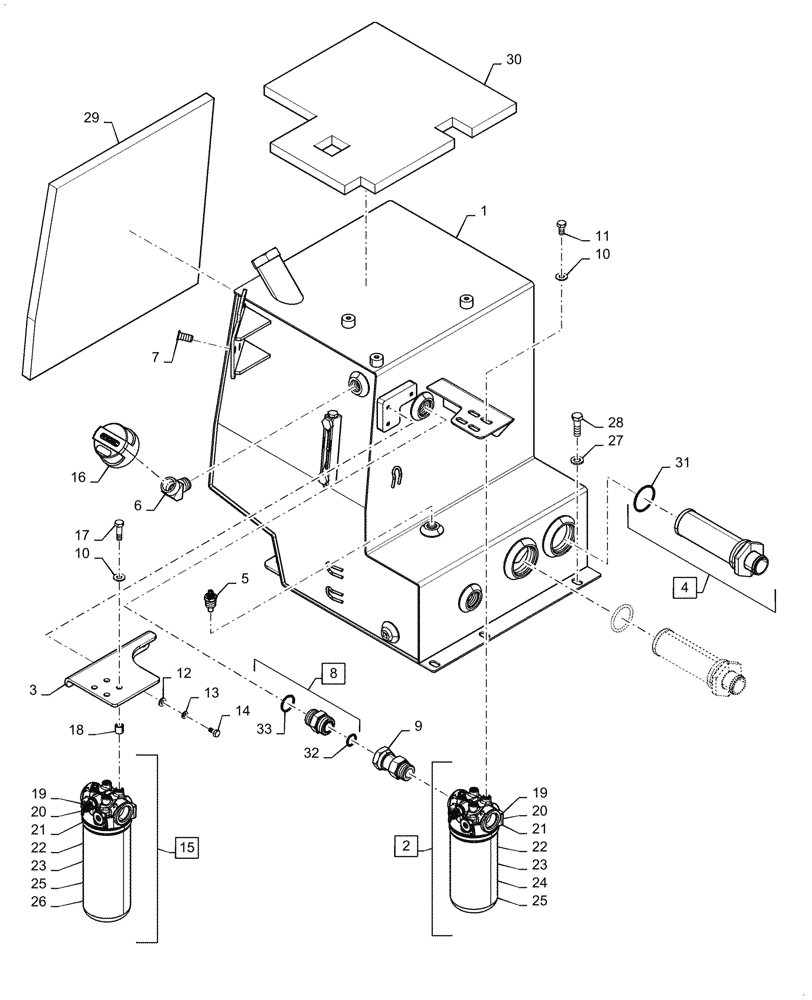

Запчасти Case 750M WT (35.300.010) - HYDRAULIC FLUID RESERVOIR (35) - HYDRAULIC SYSTEMS

1

47773182

RESERVOIR, HYDRAULIC

1шт.

2

47833560

FILTER ASSY

Implement, Incl 19 - 25

1шт.

3

47841447

BRACKET

1шт.

4

84329266

FILTER STRAINER,1.5"

Incl 31

2шт.

5

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

6

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

4шт.

8

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 32, 33

1шт.

9

87682177

OPERATOR MANUAL

1шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

12

87713131

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2mm Thk, Blk

3шт.

13

892-11008

LOCK WASHER,8mm ID

3шт.

14

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

15

47833558

HYDRAULIC OIL FILTER

Incl 19 - 23, 25, 26

1шт.

16

84339375

BREATHER

1шт.

17

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

18

47833558

HYDRAULIC OIL FILTER

4шт.

19

8604802

PRESSURE SWITCH

2шт.

20

129-667

NUT,#10-32, LH

4шт.

21

493-21020

LOCK WASHER,Int Tooth, #10

2шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

23

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

24

47833566

HYDRAULIC OIL FILTER

1шт.

25

NSS

NOT SOLD SEPARAT

2шт.

26

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

1шт.

27

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

6шт.

28

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

6шт.

29

47513350

SIDE PANEL

1шт.

30

47811153

PANEL

1шт.

31

84375831

OIL SEAL,3mm Thk x 59mm ID, 70 Duro

2шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

33

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
