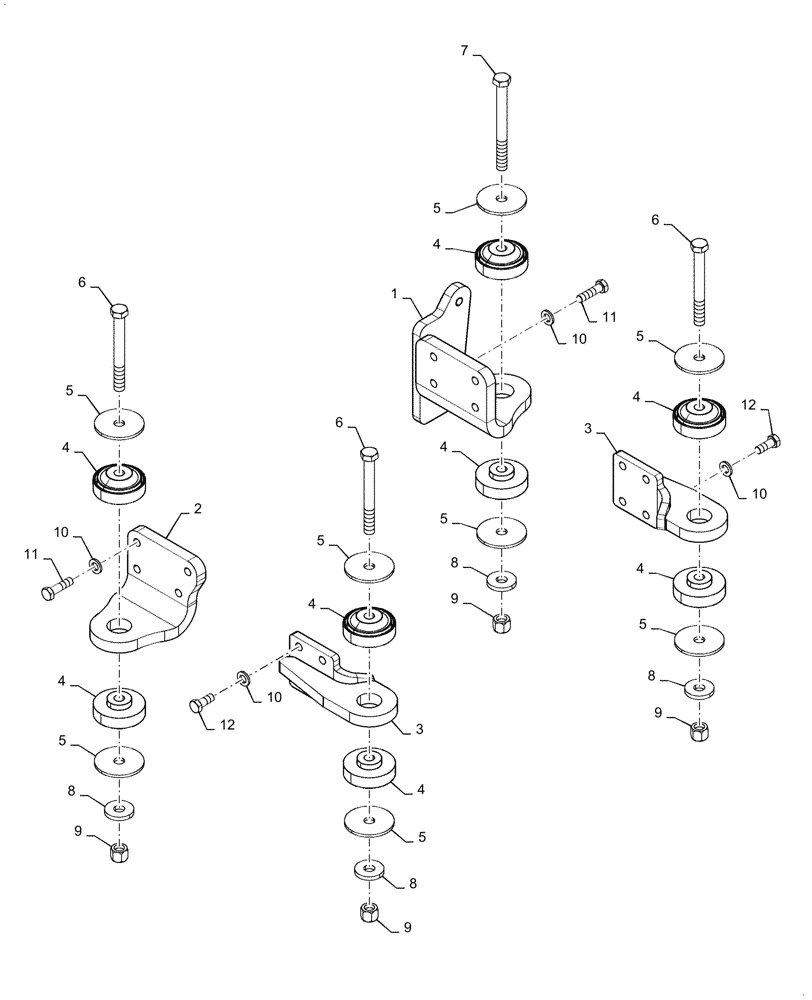

Запчасти Case 750M WT (10.001.010) - VAR - 784818 - ENGINE MOUNT (10) - ENGINE

1

47474342

ENGINE MOUNT

1шт.

2

47474335

ENGINE MOUNT

1шт.

3

47475362

ENGINE MOUNT

2шт.

4

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

8шт.

5

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

8шт.

6

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

3шт.

7

371221

BOLT,Hex, M16 x 2 x 160mm, Cl 8.8

1шт.

8

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

4шт.

9

832-10416

NUT,M16 x 2, Cl 8

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

11

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

12

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

8шт.
