(48.100.020) - VAR - 784808 - CRAWLER TRACK ASSY, 39 LINK 18" 1 BAR CLOSED, SALT HD

Запчасти Case 750M LT (48.100.020) - VAR - 784808 - CRAWLER TRACK ASSY, 39 LINK 18" 1 BAR CLOSED, SALT HD (48) - TRACKS & TRACK SUSPENSION

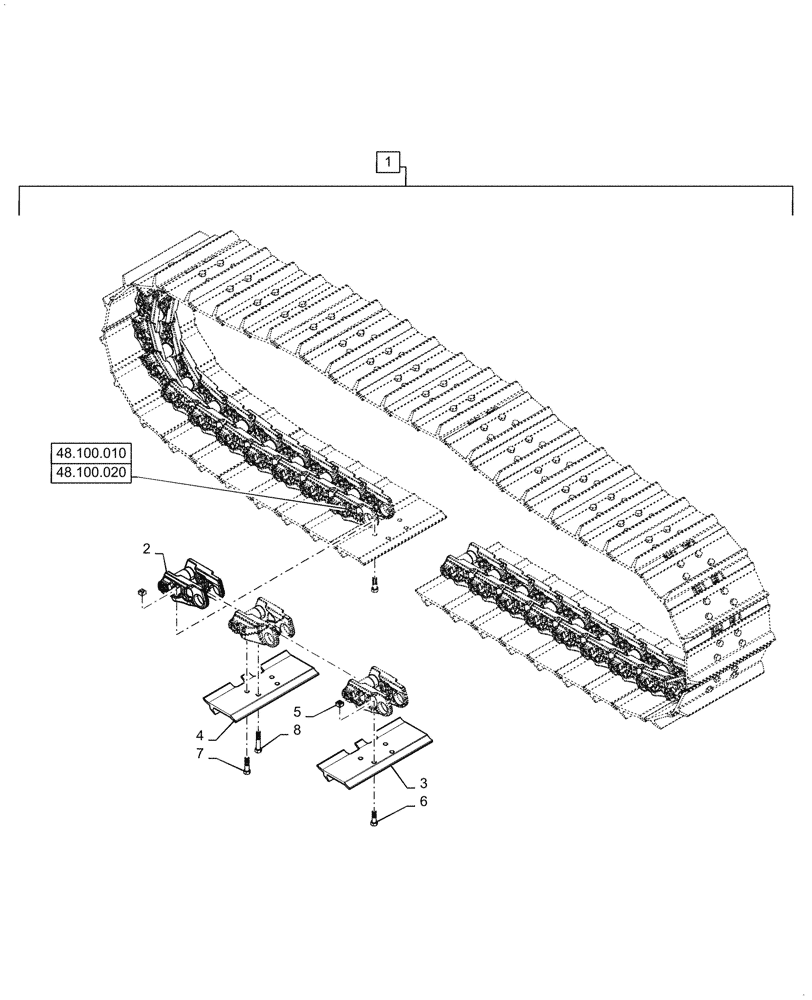

Схема запчастей Case 750M LT - (48.100.020) - VAR - 784808 - CRAWLER TRACK ASSY, 39 LINK 18" 1 BAR CLOSED, SALT HD (48) - TRACKS & TRACK SUSPENSION
48.100.020
2
3
7
5
4
8
48.100.010
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47945269

CRAWLER TRACK ASSY

39 Link, 18" 1 Bar Closed, Salt HD, Incl 2 - 8

1шт.

2

47959365

TRACK CHAIN

39 Link, SALT HD

1шт.

3

47960100

TRACK SHOE

18" 1 Bar, Closed

38шт.

4

47960104

TRACK SHOE

Master, 18" 1 Bar, Closed

1шт.

5

47958235

SQUARE NUT

Track Shoe

152шт.

6

47958236

BOLT

Track Shoe

152шт.

7

47958237

BOLT

Master Track Shoe

4шт.
