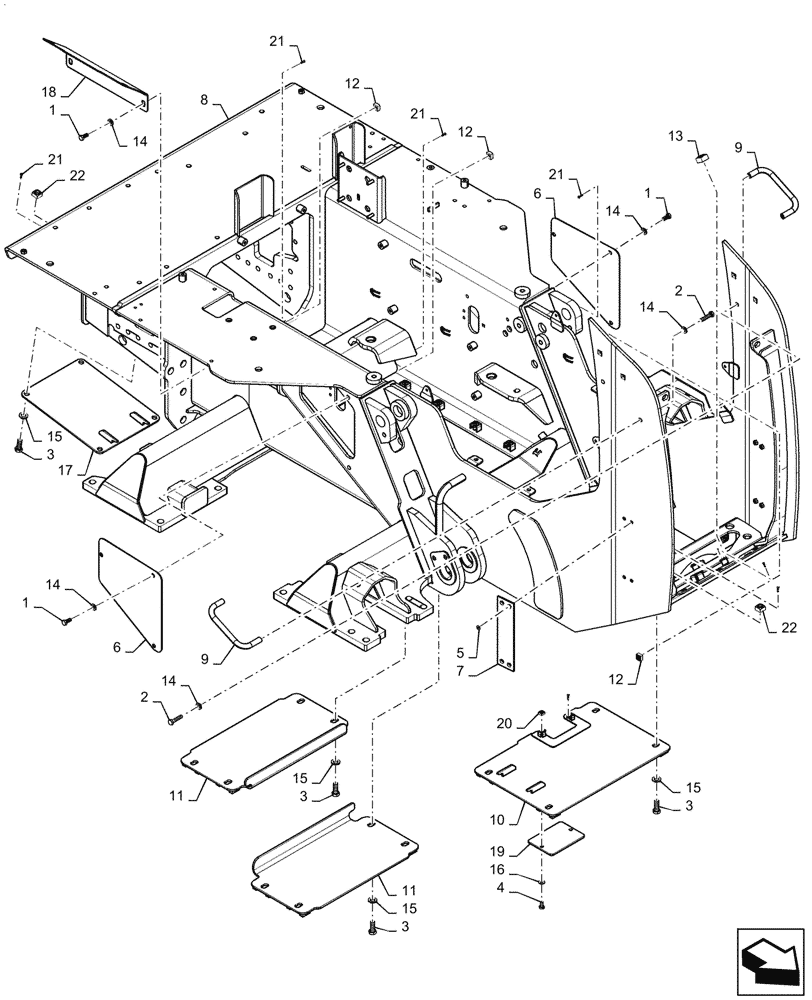

Запчасти Case 750M LT (39.100.010) - MAIN FRAME LT (39) - FRAMES AND BALLASTING

1

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

10шт.

2

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

3

374834

CLEVIS PIN,M8 x 22

16шт.

4

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

5

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

8шт.

6

47358325

COVER

2шт.

7

47809405

WEAR PLATE

2шт.

8

47929776

FRAME

1шт.

9

84554799

HANDLE

2шт.

10

84554804

PAN

1шт.

11

84555142

PAN

2шт.

12

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

20шт.

13

87535798

SQUARE NUT

4шт.

14

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

14шт.

15

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

16шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

17

87706438

PAN

1шт.

18

87706450

COVER

1шт.

19

87710382

COVER

1шт.

20

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

2шт.

21

336371A1

PIN,4.88mm OD x 14.23mm L

44шт.

22

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

18шт.
