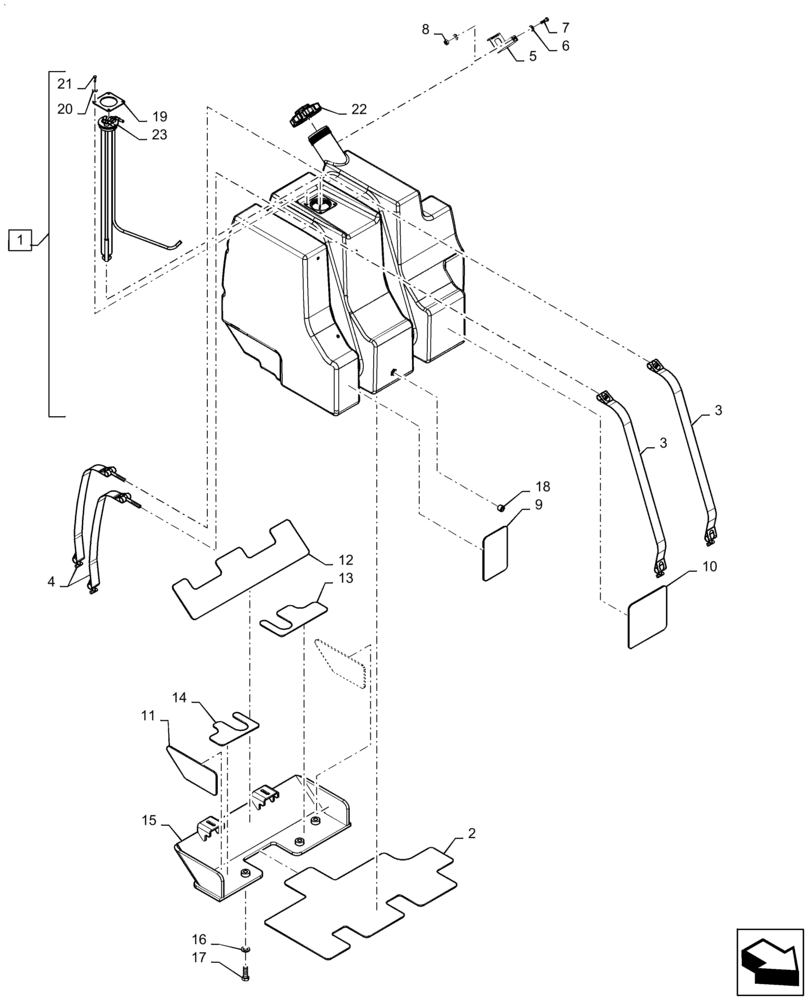

Запчасти Case 750M LT (10.216.020) - FUEL TANK (10) - ENGINE

1

47490131

FUEL TANK

Fuel Tank Assembly, Incl 19 - 23

1шт.

2

84527649

MAT

Rubber Mat for Fuel Tank

1шт.

3

84413123

SECURING STRAP

Large Strap for Fuel Tank

2шт.

4

84413124

SECURING STRAP

Rear Fuel Tank Strap

2шт.

5

84422166

COLLAR CLAMP

Painted Locking Clamp

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

7

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

84539466

MAT

Rubber Mat for Fuel Tank

1шт.

10

84539467

MAT

Rubber Mat for Fuel Tank

1шт.

11

84539468

MAT

Rubber Mat for Fuel Tank

1шт.

12

84539469

MAT

Rubber Mat for Fuel Tank

1шт.

13

84539471

MAT

Rubber Mat for Fuel Tank

1шт.

14

84539473

MAT

Rubber Mat for Fuel Tank

1шт.

15

84539481

SUPPORT

Painted Fuel Tank Support

1шт.

16

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16 5/8", 17.75mm ID Washer

4шт.

17

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

M16 X 45mm Bolt

4шт.

18

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

Headless Square Socket Pipe Plug

1шт.

19

84415880

RING,64mm OD, 90mm x 90mm L

Fuel Tank Sender

1шт.

20

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

22

84293447

CAP,128.7mm D

Fuel Tank

1шт.

23

47439819

SENDER UNIT

Fuel Sender Unit, Incl in Ref 1

1шт.

24

47661656

RUBBER SEAL

LH, Rubber Mat

1шт.
