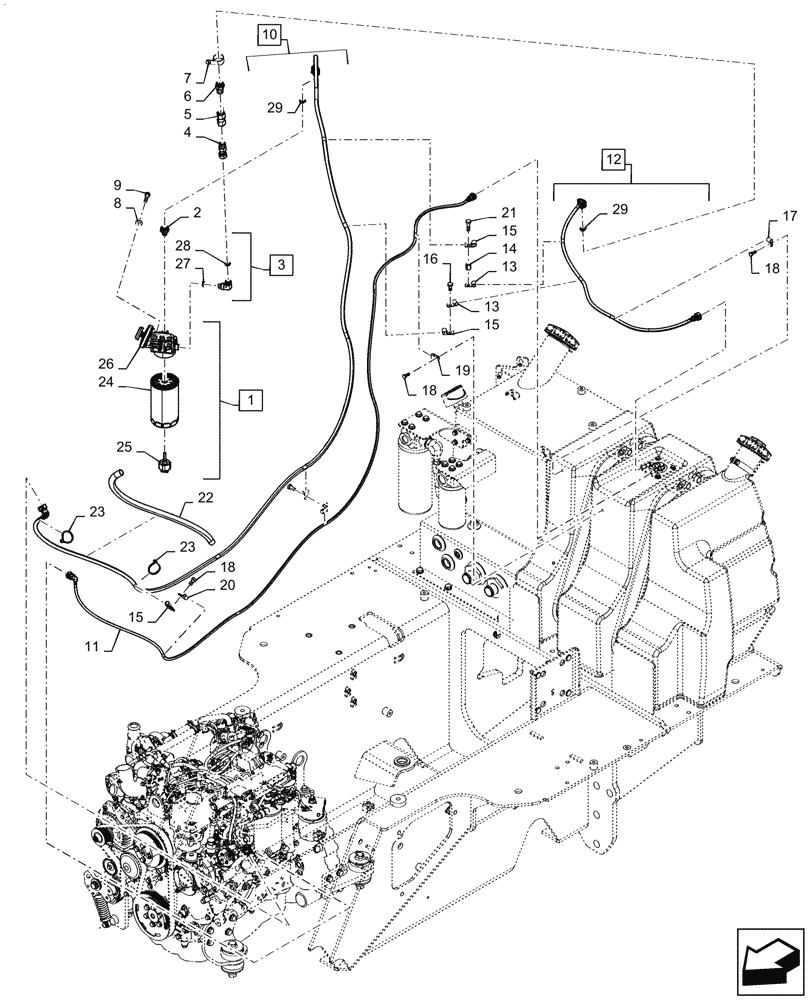

Запчасти Case 750M LT (10.216.010) - FUEL LINE & INLINE FILTER (10) - ENGINE

1

84348875

FILTER ASSY

Incl 24 - 26

1шт.

2

47728714

ADAPTER

1шт.

3

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

Incl 27, 28

1шт.

4

84520680

HYD CONNECTOR

1шт.

5

86984713

SHUT-OFF VALVE

1шт.

6

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

7

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

9

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

10

84534512

FUEL TUBE

Incl 29

1шт.

11

84534515

FUEL TUBE

1шт.

12

84534514

FUEL TUBE

Incl 29

1шт.

13

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

14

436110A1

SPACER

1шт.

15

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

7шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

5шт.

17

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

19

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

20

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

21

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

22

NSS

NOT SOLD SEPARAT

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

24

84337371

FUEL FILTER

Incl in 1

1шт.

25

87519307

SENSOR

Incl in 1

1шт.

26

87705123

FILTER HEAD

Incl in 1

1шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

29

4890929

O-RING,3mm Thk x 11mm ID

2шт.
