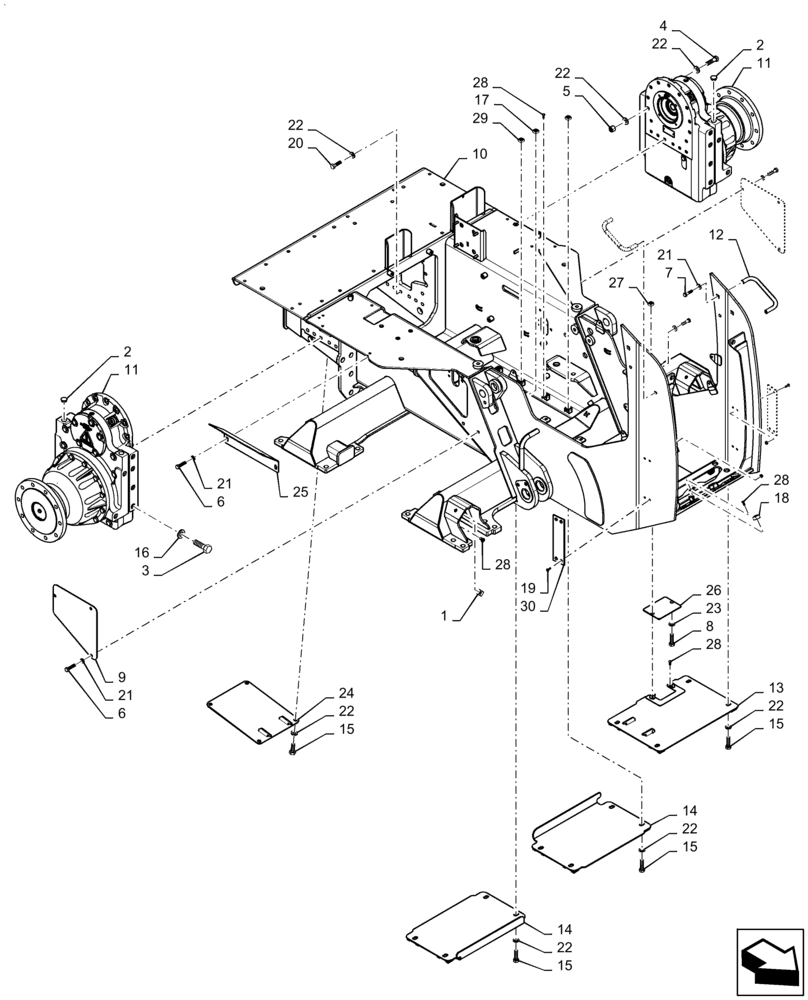

Запчасти Case 750M LT (39.100.AB[04]) - MAIN FRAME, WIDE (39) - FRAMES AND BALLASTING

1

129-857

SQUARE NUT,Sq, 1/2"-13

4шт.

2

353-432

PLUG,7/8" Hole, Nylon

4шт.

3

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

10шт.

4

608-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

14шт.

5

832-10416

NUT,M16 x 2, Cl 8

2шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

10шт.

7

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

8

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

9

47358325

COVER

Fender- CASE

2шт.

10

47453833

FRAME

Frame W, Main WT- CASE

1шт.

11

84490715

TRANSMISSION

Final Drive, 67-70 Gauge

2шт.

12

84554799

HANDLE

2шт.

13

84554804

PAN

Front Belly, Pan W, Painted

1шт.

14

84555142

PAN

Belly Pan, Painted

2шт.

15

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

16

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

10шт.

17

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

M12 X 1.75 ZND

20шт.

18

87535798

SQUARE NUT

M20 X 25

4шт.

19

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

Rear Cover- CASE

8шт.

20

87652887

BOLT,Hex, M16 x 60mm, Cl 10.9

16шт.

21

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

14шт.

22

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16, 17.75X31.5X4.2 HTS BORON ZN

48шт.

23

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

24

87706438

PAN

Rear Belly Pan W

1шт.

25

87706450

COVER

Hose Access Cover- CASE

1шт.

26

87710382

COVER

Oil Access Cover

1шт.

27

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

10M-1.5 W/RETAINING CLS 8 ZND

2шт.

28

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Pin

54шт.

29

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

M16X2

18шт.

30

47809405

WEAR PLATE

Plate, CE Gray

2шт.
