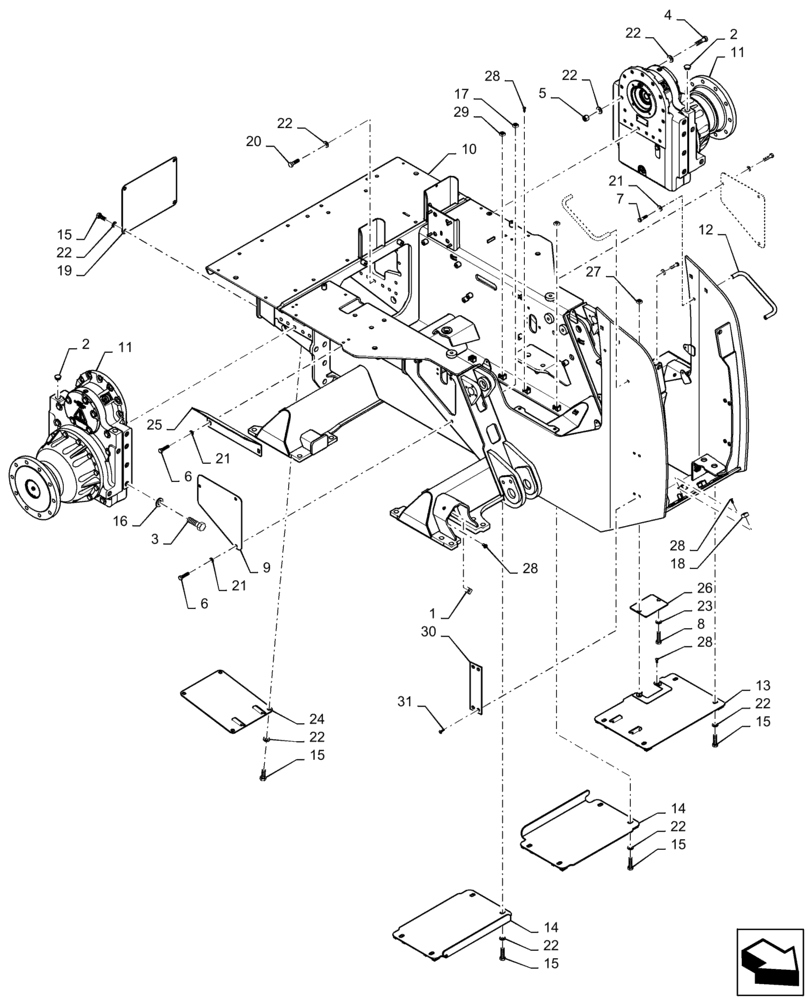

Запчасти Case 750M LT (39.100.AB[03]) - MAIN FRAME, NARROW (39) - FRAMES AND BALLASTING

1

129-857

SQUARE NUT,Sq, 1/2"-13

4шт.

2

353-432

PLUG,7/8" Hole, Nylon

4шт.

3

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

10шт.

4

608-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

14шт.

5

832-10416

NUT,M16 x 2, Cl 8

2шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

10шт.

7

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

8

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

9

47358325

COVER

Fender Cover

2шт.

10

47453832

FRAME

Main LT Frame W

1шт.

11

84490714

TRANSMISSION

57-62 Gauge Final Drive

2шт.

12

84554799

HANDLE

Front Grab Handle

2шт.

13

84554804

PAN

Front Belly Pan W

1шт.

14

84555142

PAN

Belly Pan W

2шт.

15

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

20шт.

16

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

10шт.

17

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

M12 X 1.75 Square Nut

20шт.

18

87535798

SQUARE NUT

M20 X 25 Square Nut

4шт.

19

87600821

COVER

Rear Cover- CASE

1шт.

20

87652887

BOLT,Hex, M16 x 60mm, Cl 10.9

16mm D Prevailing Torque Hex Bolt

16шт.

21

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12 1/2", 13.65mm ID Washer

14шт.

22

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16 5/8", 17.75mm ID Washer

52шт.

23

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

24

87706438

PAN

Rear Belly Pan W

1шт.

25

87706450

COVER

Access Hose Cover- CASE

1шт.

26

87710382

COVER

Oil Access Cover

1шт.

27

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10 X 1.5 Square Nut

2шт.

28

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Pin

50шт.

29

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

M16 X 2 Square Nut

20шт.

30

47809405

WEAR PLATE

2шт.

31

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

8шт.
