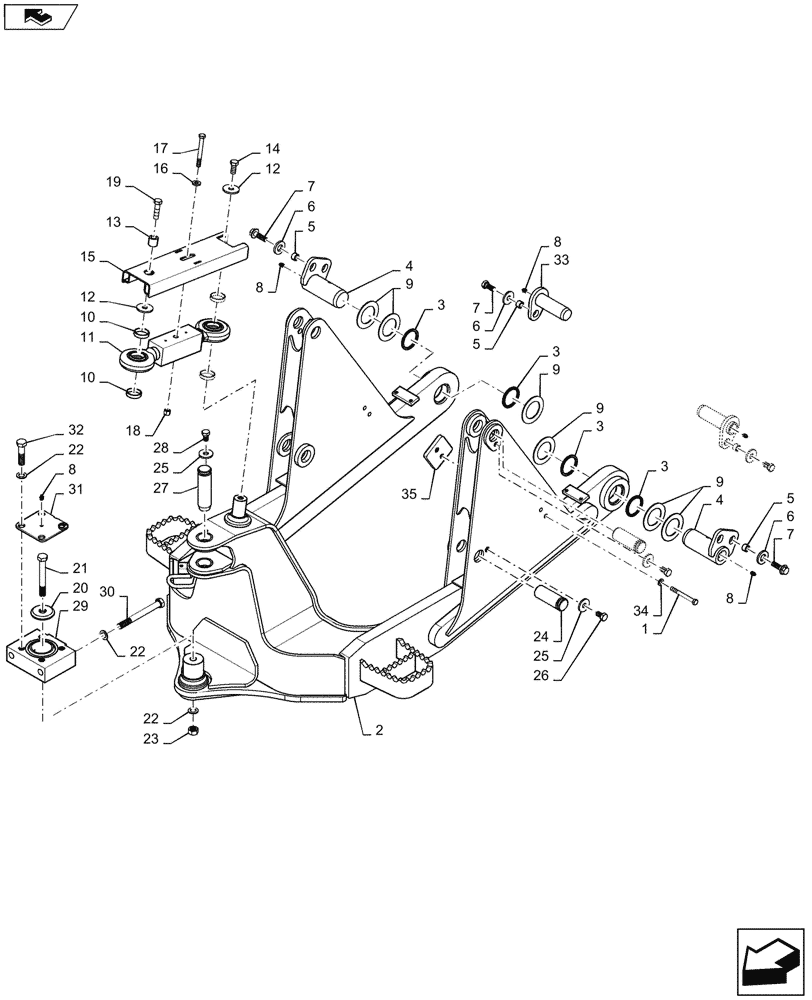

Запчасти Case 750M LT (39.100.AB[02]) - FRAME C AND PITCH LINK (39) - FRAMES AND BALLASTING

1

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

4шт.

2

48027411

FRAME

Frame Assembly C, Inside, Painted- CE Grey

1шт.

3

L113522

SEAL

Pin Seal

4шт.

4

87676279

PIN

W C-Frame Mount Pin

2шт.

5

419041A1

SPACER

Mounting Spacer

6шт.

6

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

5-8 FLAT HT

4шт.

7

86631181

BOLT,Hex, M16 x 50mm, Cl 10.9

FLANGE M16X50 FULL 10.9 PHC

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

9

495-81283

WASHER,2 5/8" x 4" x .109"

6шт.

10

87311756

SPACER, RING,45.26mm ID x 50.8mm OD x 11.9mm L

Pitch Link Spacer

4шт.

11

87311753

LINK ASSY.

Pitch Link Assembly

1шт.

12

895-30103

WASHER,M16 x 56 x 5

2шт.

13

418981A1

SPACER

30 OD, 17.50 ID, 28 Thickness

1шт.

14

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

3шт.

15

87559496

COVER

Pitch Link Cover

1шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

17

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

18

231-1448

NUT,1/2"-13, GB

1шт.

19

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

20

119105A1

WASHER

Hardened Belveled Washer

1шт.

21

9849411

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

1шт.

22

87016606

WASHER,20mm ID x 34mm OD x 3mm Thk

7шт.

23

9847024

NUT,M20, Cl 10

1шт.

24

345410A1

GROOVED PIN

44.45 DIA.LIFT/ANGLE

4шт.

25

419223A1

WASHER

17.5 ID, 47.65 OD

10шт.

26

86639032

BOLT,Hex, M16 x 25mm, Cl 10.9, Full Thd

4шт.

27

435157A1

GROOVED PIN,44.42mm OD x 165mm L

44.45 DIA.ANGLE CYL

4шт.

28

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

4шт.

29

405892A1

BUSHING,69.85mm ID

TRUNNION BLADE

1шт.

30

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

2шт.

31

418868A1

COVER PLATE

Bushing Cover

1шт.

32

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

33

47457940

PIN

TRUNNION

2шт.

34

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

35

47458397

WEAR PLATE

Frame-C

2шт.
