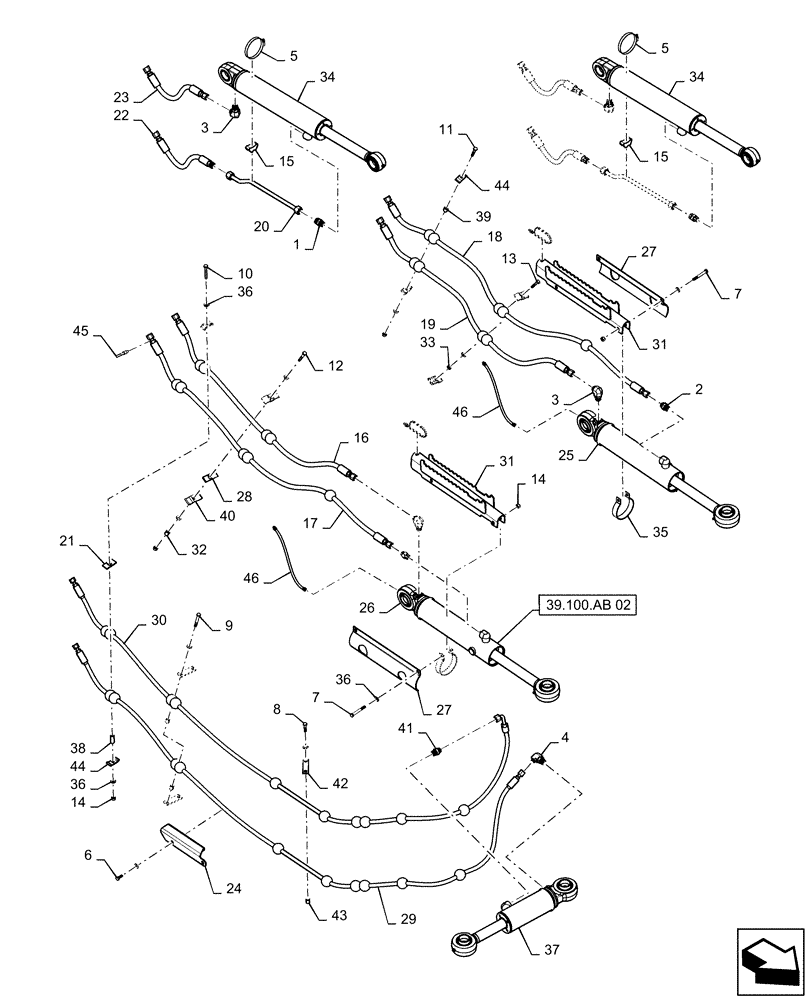

Запчасти Case 750M LT (35.741.AD[01]) - BLADE, CYLINDER AND , HOSE ASSY. (35) - HYDRAULIC SYSTEMS

1

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

2

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

2шт.

3

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

4шт.

4

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

5

214-1580

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm, W/ Liner

2шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

9

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

10

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

12

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

13

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

14

412141

NUT,M10 x 1.5, Cl 8

8шт.

15

47372612

SADDLE

2шт.

16

47483769

HOSE

1шт.

17

47483770

HOSE

1шт.

18

47484356

HOSE

1шт.

19

47484358

HOSE

1шт.

20

47484795

HOSE

2шт.

21

47505109

BAR

1шт.

22

47515106

HOSE

2шт.

23

47515107

HOSE

2шт.

24

47542782

COVER

1шт.

25

47585532

HYDRAULIC CYLINDER

1шт.

26

47585533

HYDRAULIC CYLINDER

1шт.

27

47593516

GUARD

2шт.

28

47614622

SPACER

1шт.

29

84131380

HOSE

1шт.

30

84131379

HOSE

1шт.

31

84216034

GUARD

2шт.

32

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

33

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

1шт.

34

87361535

LIFT CYLINDER,Double Acting, 44.4mm Rod, 394.5mm Stroke

2шт.

35

87434531

CLAMP

4шт.

36

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

24шт.

37

87691354

HYDRAULIC CYLINDER

1шт.

38

164519C1

SPACER,5/8" Tube x 1 5/8"

1шт.

39

26241H

SPACER,3/8" X-Strng Pipe x 3/4"

1шт.

40

434130A1

HOSE CLAMP

4шт.

41

435038A1

HYD CONNECTOR

1шт.

42

435511A1

PLATE

4шт.

43

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

8шт.

44

D138055

CLAMP

4шт.

45

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

46

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

2шт.
