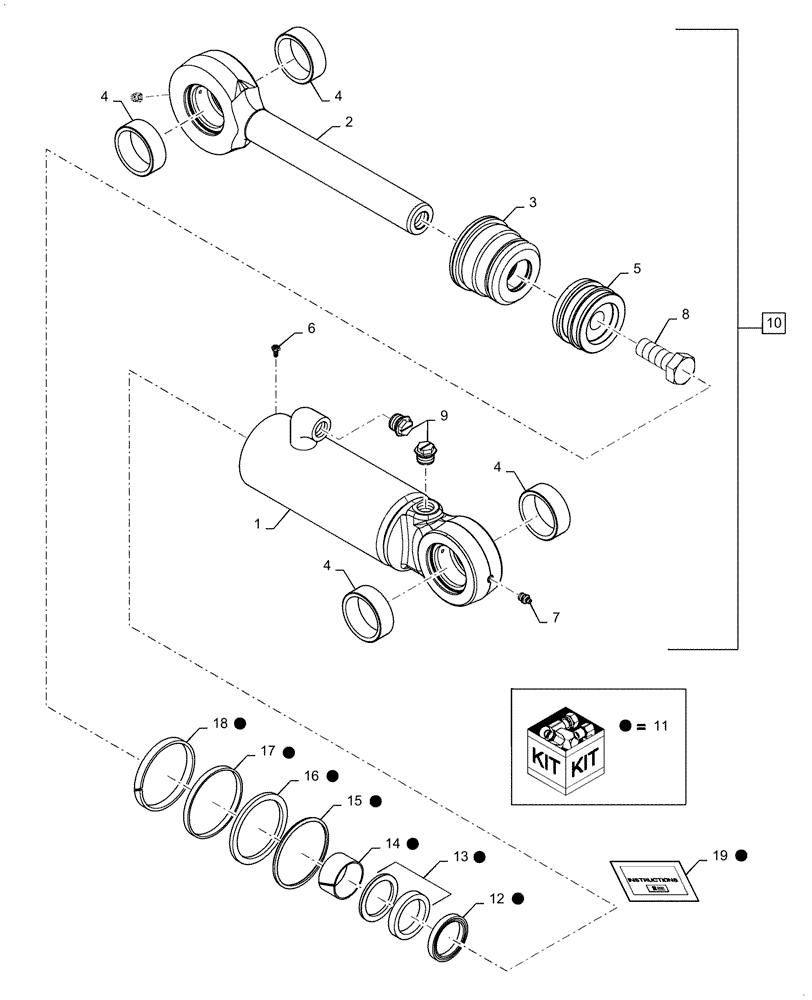

Запчасти Case 750M LT (35.741.AD[01]) - BLADE TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Tilt Cylinder Tube and Eye, Incl in Ref. 10

1шт.

2

405299A1

PISTON ROD,44.4mm OD x 585.6mm L

1шт.

3

355529A1

GLAND

Internal Cylinder

1шт.

4

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

4шт.

5

1986982C1

PISTON

Internal Cylinder

1шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

Incl Washer

1шт.

9

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

10

87361535

LIFT CYLINDER,Double Acting, 44.4mm Rod, 394.5mm Stroke

Tilt Cylinder

1шт.

11

84155590

SEAL KIT

Incl 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper Rod

1шт.

13

NSS

NOT SOLD SEPARAT

Buffer Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Bearing Rod

1шт.

15

NSS

NOT SOLD SEPARAT

Static Head Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Ring Loader

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Seal Kit Instruction Sheet

1шт.
