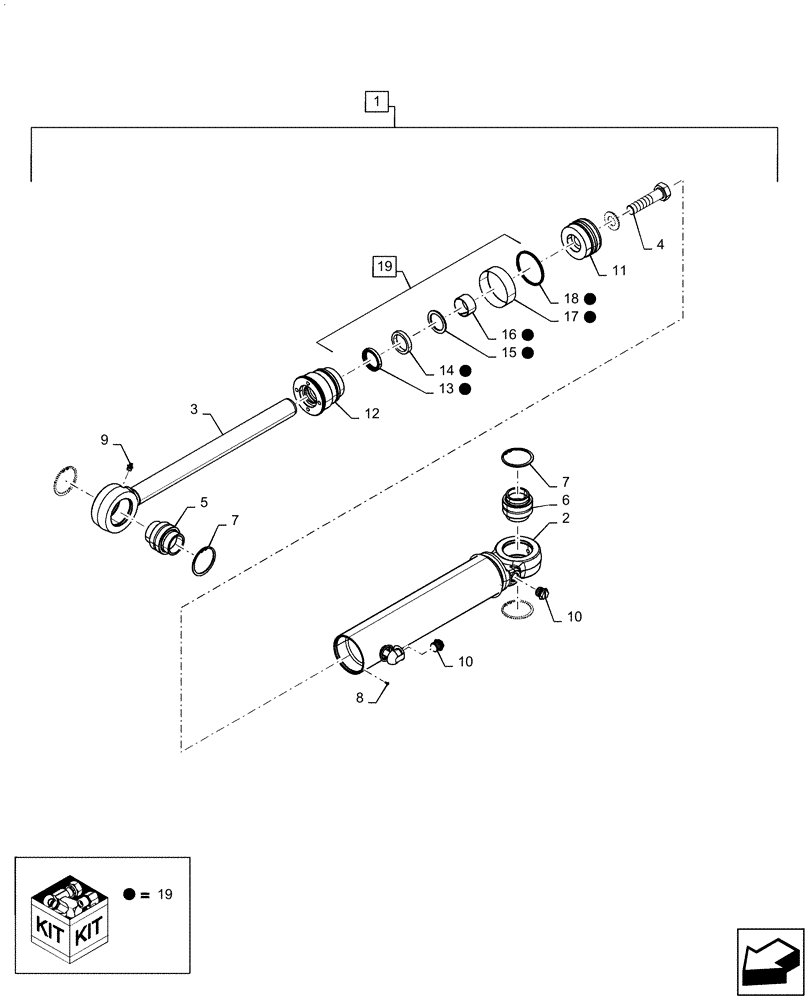

Запчасти Case 750M LT (35.741.AC[04]) - BLADE LH ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS

1

47585532

HYDRAULIC CYLINDER

LH Angle, Incl Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Spud, and Eye Incl in Ref. 1

1шт.

3

84136291

PISTON ROD

Angle Cylinder

1шт.

4

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

Piston Rod

1шт.

5

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

6

407539A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W

1шт.

7

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

4шт.

8

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

10

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

11

190395A1

PISTON ASSY.

Internal, Piston Rod

1шт.

12

87610735

GLAND

INternal, Piston Rod

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper, Rod

1шт.

14

NSS

NOT SOLD SEPARAT

Rod and Buffer Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Bearing Rod

1шт.

16

NSS

NOT SOLD SEPARAT

Static Head Seal

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

19

84157290

SEAL KIT

Incl 14 -19 and Instruction Sheet

1шт.
