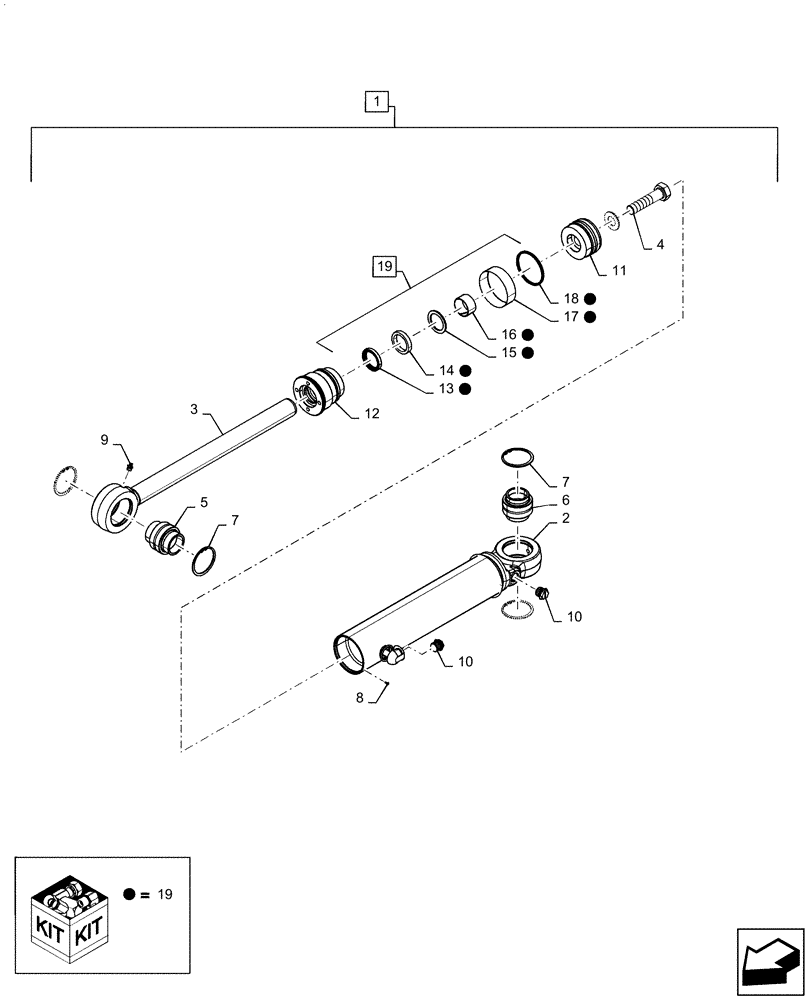

Запчасти Case 750M LT (35.741.AC[03]) - BLADE RH ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS

1

47585533

HYDRAULIC CYLINDER

RH Angle, Incl Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Spud, and Eye Incl in Ref. 1

1шт.

3

84136291

PISTON ROD

Angle Cylinder

1шт.

4

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

Internal Angle Cylinder

1шт.

5

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

6

407539A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W

1шт.

7

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

4шт.

8

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

10

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

11

190395A1

PISTON ASSY.

Internal Angle Cylinder

1шт.

12

87610735

GLAND

Internal Angle Cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper, Rod, Incl in Ref. 19

1шт.

14

NSS

NOT SOLD SEPARAT

Rod and Buffer Seal, Incl in Ref. 19

1шт.

15

NSS

NOT SOLD SEPARAT

Bearing Rod, Incl in Ref. 19

1шт.

16

NSS

NOT SOLD SEPARAT

Static Head Seal, Incl in Ref. 19

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Seal, Incl in Ref. 19

1шт.

18

NSS

NOT SOLD SEPARAT

Wear Ring, Incl in Ref. 19

1шт.

19

84157290

SEAL KIT

Incl 13 -18 and Instruction Sheet

1шт.
