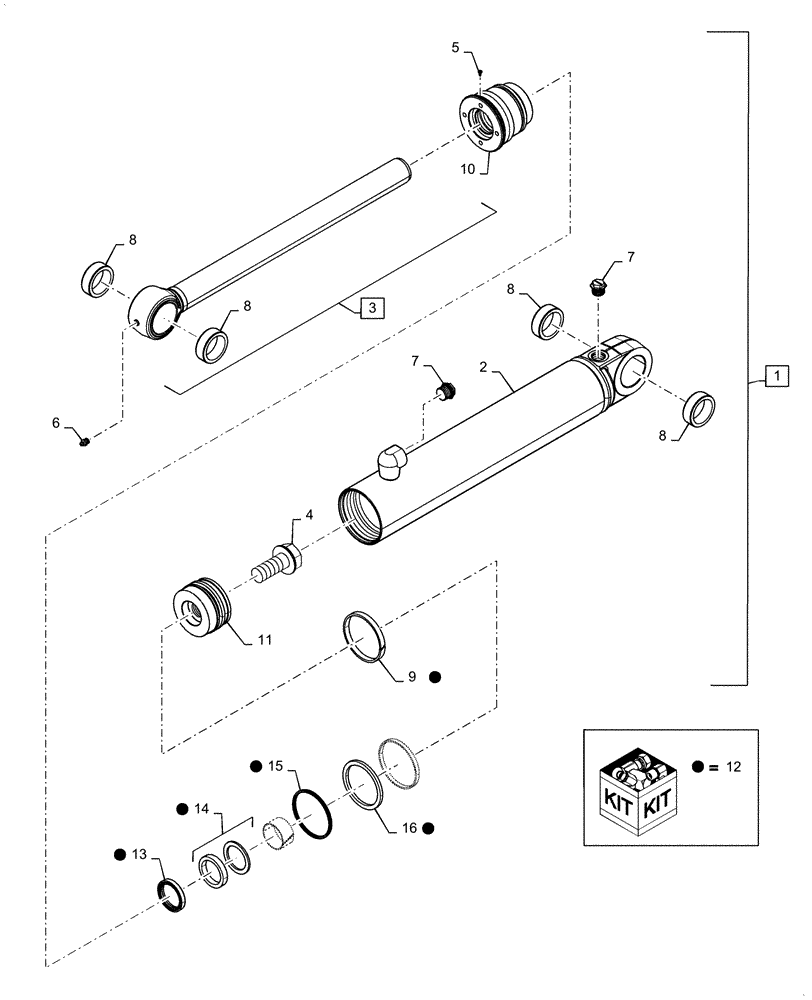

Запчасти Case 750M LT (35.741.AA[02]) - BLADE LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

87361535

LIFT CYLINDER,Double Acting, 44.4mm Rod, 394.5mm Stroke

Incl 2 - 8, 10,11

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Body, Incl in Ref.1

1шт.

3

405299A1

PISTON ROD,44.4mm OD x 585.6mm L

Incl (2) Ref. 8

1шт.

4

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

8

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

4шт.

9

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

10

355529A1

GLAND

Rod Assy

1шт.

11

1986981C1

PISTON ASSY.

Rod Assy

1шт.

12

84155590

SEAL KIT

Incl Instruction Sheet and Refs. 14 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

WIper, Rod

1шт.

14

NSS

NOT SOLD SEPARAT

Rod and Buffer Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Static Head Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Loader

1шт.
