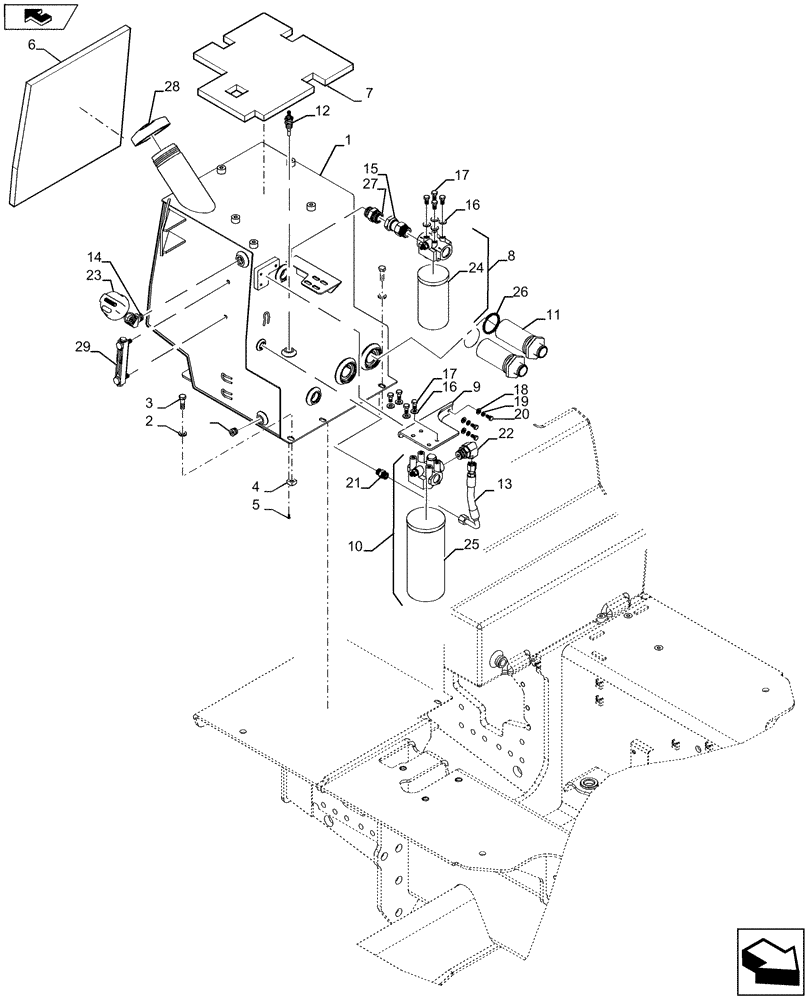

Запчасти Case 750M LT (35.300.AQ[01]) - HYDRAULIC FLUID RESERVOIR - BSN - NGC101084 (35) - HYDRAULIC SYSTEMS

1

84582751

RESERVOIR, HYDRAULIC

Tank- Painted

1шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

6шт.

3

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

6шт.

4

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

M12 X 1.75 ZND

6шт.

5

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Pin

6шт.

6

47513350

SIDE PANEL

Sound Absorbing Rear Hydraulic Tank Panel

1шт.

7

47513349

SIDE PANEL

Sound Absorbing Top Hydraulic Tank Panel

1шт.

8

87652240

FILTER ASSY

Incl 24

1шт.

9

84516795

BRACKET

Hydraulic Filter Bracket

1шт.

10

418237A1

FILTER ASSY

Incl 25

1шт.

11

84329266

FILTER STRAINER,1.5"

1.50 in

2шт.

12

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

M5 X 0.8, 49.2 Length

1шт.

13

84520898

HYDRAULIC HOSE

Charge Filter Hose

1шт.

14

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

15

87672177

HYD CONNECTOR

16 SAE STR THD ORFS SWVL

1шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

17

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

18

87713131

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2mm Thk, Blk

8.80X 17.5X2.2mm HTS Boron Black

3шт.

19

892-11008

LOCK WASHER,8mm ID

3шт.

20

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

21

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

22

87591918

90 ELBOW

90 ADJ Jump 1/2 ORFS- ORB 3/4

1шт.

23

84339375

BREATHER

3/4" NPT, 32 HEX, 83 Diameter Head

1шт.

24

87478098

HYDRAULIC OIL FILTER

6 Micron

1шт.

25

254353A1

HYDRAULIC OIL FILTER

4 Micron at Beta 75

1шт.

26

84375831

OIL SEAL,3mm Thk x 59mm ID, 70 Duro

59.36 x 3.00 NBR - 70

2шт.

27

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

28

84298013

CAP,128.8mm D

1шт.

29

226456A1

LEVEL GAUGE

1шт.
