Запчасти Case 750M LT (29.218.AO[01]) - PUMP, WITHOUT PTO (29) - HYDROSTATIC DRIVE

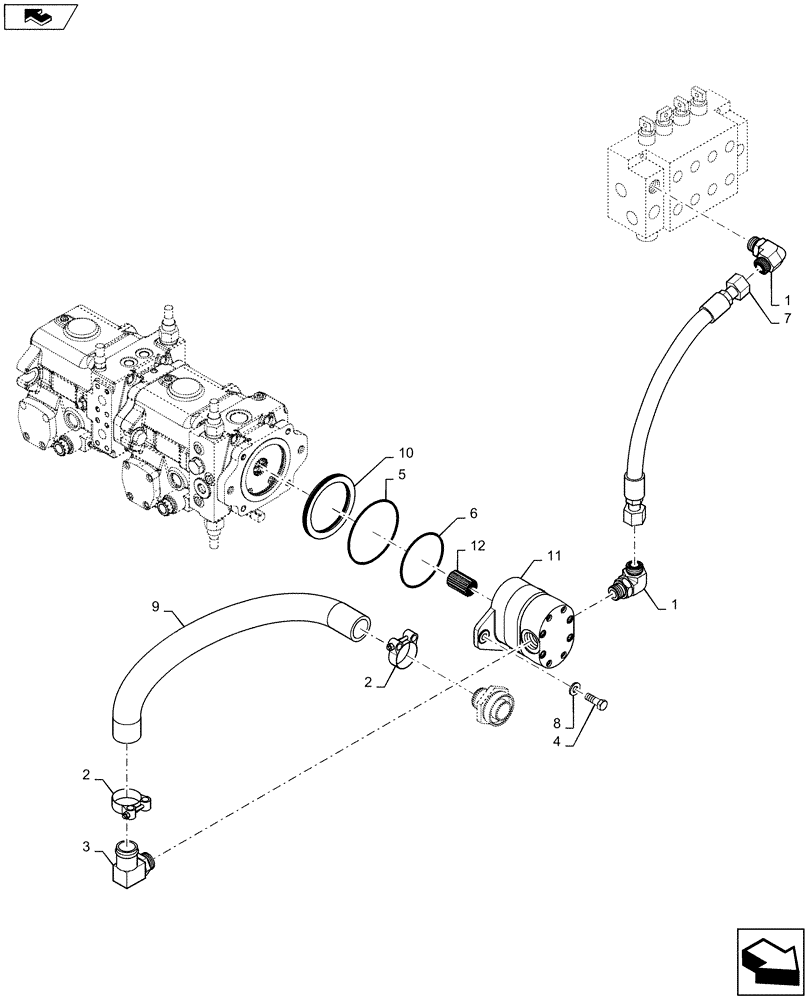

Схема запчастей Case 750M LT - (29.218.AO[01]) - PUMP, WITHOUT PTO (29) - HYDROSTATIC DRIVE
5
3
10
12
11
2
1
9
4
1
2
7
6
8
home

Артикул

Название

Примечание

Количество

1

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

2шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

2шт.

3

217-222

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

4

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

5

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

6

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

7

84481315

HOSE ASSY.

Hose Assembly, Equip to Valve

1шт.

8

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65mmX24.9X3.2 HTS BORON ZN

2шт.

9

87668192

HOSE

Hose Assembly, Equip to Pump Supply

1шт.

10

87673267

ADAPTER

Standard Pump Adapter

1шт.

11

396801A2

PUMP, HYDRAULIC,41 CC

Hyraudlic Pump Assembly 41CC Equipment

1шт.

12

434451A1

SPLINE

Spline Spacer 14/13

1шт.

Выбрано товаров: 12
