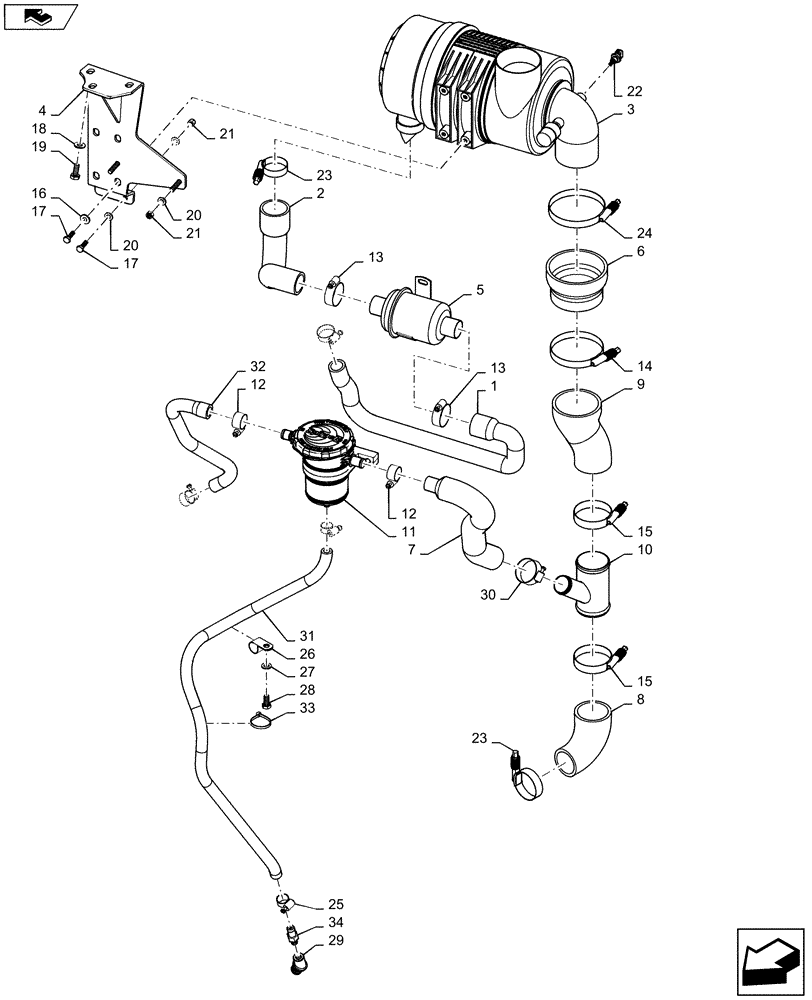

Запчасти Case 750M LT (10.202.AK[01]) - AIR INTAKE (10) - ENGINE

1

84598707

INTAKE AIR HOSE

Aspirator to Exhaust Hose

1шт.

2

84598706

INTAKE AIR HOSE

Aispirator to Valve Hose

1шт.

3

47445376

AIR CLEANER

Radial Seal 8" Air Cleaner Assembly

1шт.

4

47401025

BRACKET

Air Cleaner Mount

1шт.

5

406089A2

VALVE

Asiprator Check Valve

1шт.

6

84598699

INTAKE AIR HOSE

Upper Air Intake Hose

1шт.

7

47548173

AIR INTAKE TUBE

Tube CCV, connects to Filter Assembly

1шт.

8

84598705

INTAKE AIR HOSE

Air Intake Hose to Turbo

1шт.

9

84598700

INTAKE AIR HOSE

Lower Air Intake Hose

1шт.

10

47539433

AIR INTAKE TUBE

Air Cleaner Tube Assembly

1шт.

11

47403274

FILTER ASSY

Filter Element CCV

1шт.

12

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

3шт.

13

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

3шт.

14

L124635

HOSE CLAMP

3 3/4 - 4 5/8" D Constant Torque Clamp Assembly

2шт.

15

L115548

CLAMP,57.15mm - 79.38mm

2 1/4 - 3 1/8" D Constant Torque Clamp Assembly

2шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

19

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

21

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

22

84539252

SENSOR

Air Temperature Sensor

1шт.

23

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1 3/4" - 2 5/8" D Constant Torque Clamp Assembly

2шт.

24

L127771

CLAMP,107.95mm - 130.18mm

4 1/4" - 5 1/8" D Constant Torque Clamp Assembly

1шт.

25

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

26

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

27

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

28

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

29

47547925

SOCKET

Line Pipe Socket

1шт.

30

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

31

47430191

HOSE

Air Intake Hose to Case/Filter Assy CCV

1шт.

32

47402867

TUBE

CCV Oil Filter Drain Tube

1шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

34

84326458

CHECK VALVE

CCV Check Valve

1шт.
