(48.100.AD[05]) - TRACK CHAIN, 24" OPEN

Запчасти Case 750M LT (48.100.AD[05]) - TRACK CHAIN, 24" OPEN (48) - TRACKS & TRACK SUSPENSION

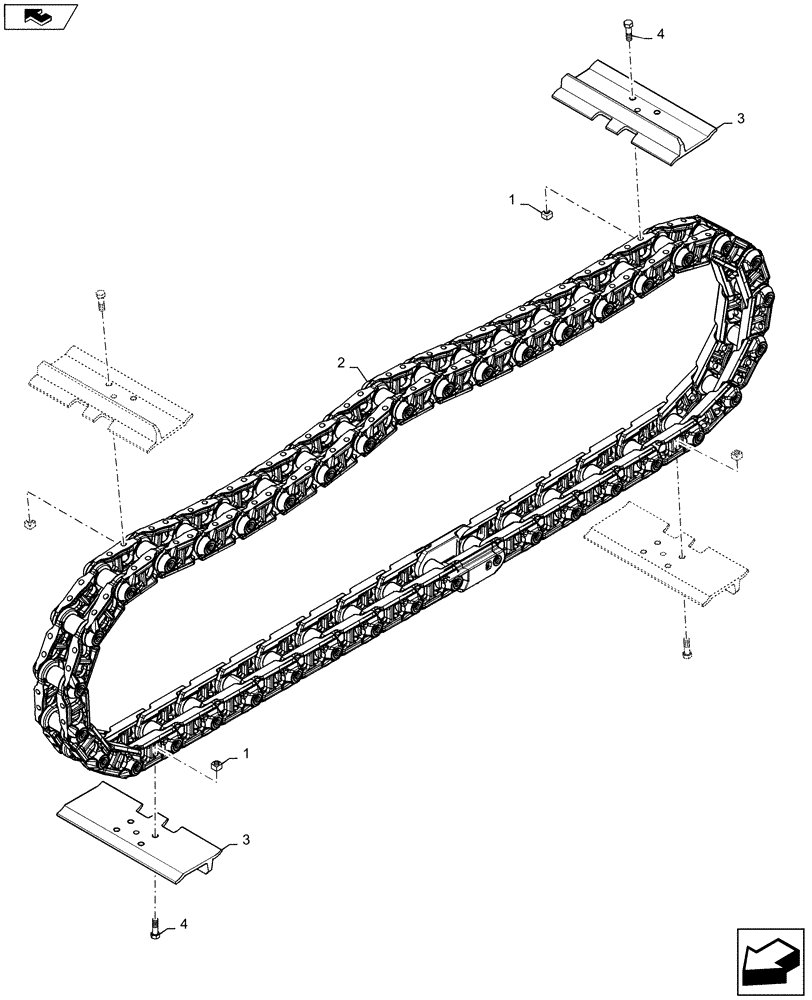

Схема запчастей Case 750M LT - (48.100.AD[05]) - TRACK CHAIN, 24" OPEN (48) - TRACKS & TRACK SUSPENSION
1
2
4
4
home
1
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R25688

SQUARE NUT

5/8" - 18 UNF Grade 8 Square Nut

152шт.

2

407020A1

TRACK CHAIN

39 Link CELT Chain Assembly

1шт.

3

328945A1

TRACK SHOE

One Bar Open 18" Track Shoe

39шт.

4

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8" Special Track Bolt

152шт.

Выбрано товаров: 4
