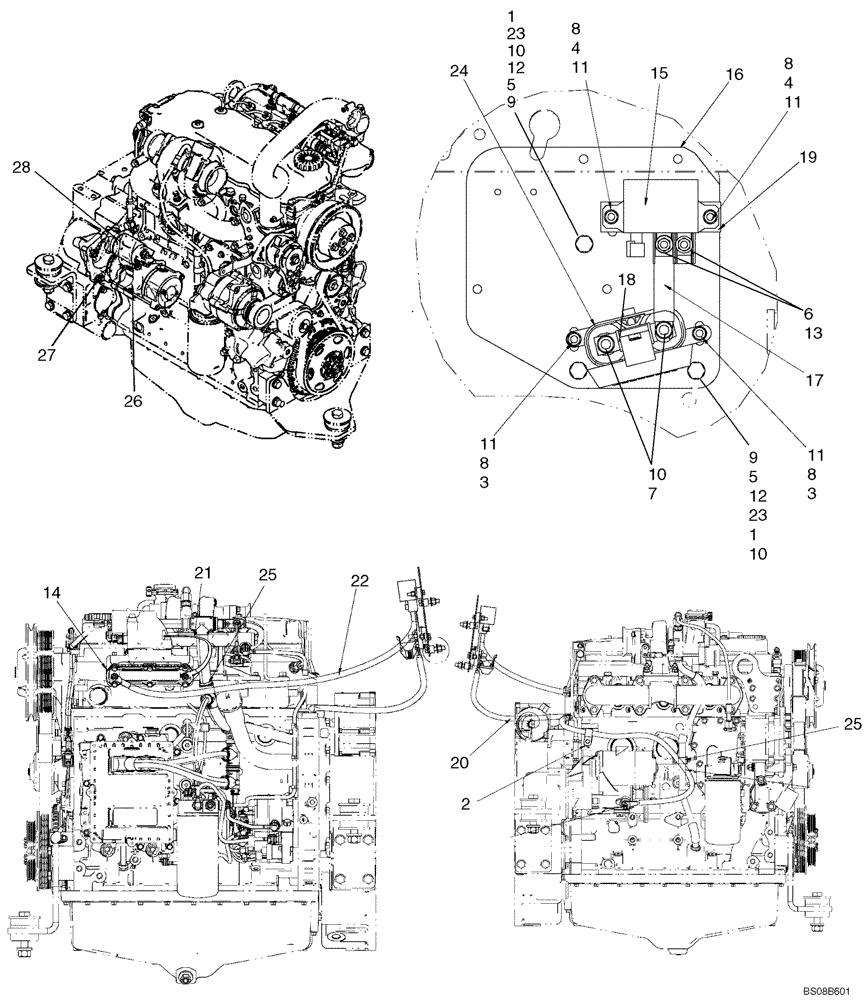

Запчасти Case 750L (04-21) - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

3шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

4

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

5

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

10

892-11008

LOCK WASHER,8mm ID

5шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

14

2854837

HEATER

Grid

1шт.

15

86619908

RELAY,12V, 150A

Grid Heater

1шт.

15

87584645

RESISTOR,1kohm, 0.5W

For Applications Without Grid Heater (Not Shown)

1шт.

16

87397601

BRACKET, SUPPORTING

1шт.

17

87410265

BAR

Cold Start, Serial Range: Fuse-Relay

1шт.

18

87410602

FUSE,300A, Blade

300 AMP

1шт.

19

87414237

PLATE,25mm W x 102mm L x 10mm Thk

1шт.

20

87419615

CABLE ASSY.

Cold Start, Serial Range: Starter-Fuse

1шт.

21

87717884

GROUND STRAP

Cold Start Ground

1шт.

22

87729557

CABLE

CABLE, Cold Start, Relay to Grid Heater

1шт.

24

440038A1

JUNCTION BLOCK

Block, Fuse

1шт.

23

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

25

D150521

CLAMP

2шт.

REF

INSTRUCTION

Optional; Motor, Starter, Heavy 12V 4.2 kw

1шт.

87475864

MOTOR, STARTER INSTALL HEAVY DUTY, OPTIONAL; Not Serviced Order Components 26 - 28

1шт.

26

87577368

STARTER MOTOR,3 hole

HEAVY, 12V 4.2 kw OPTIONAL

1шт.

26

87577368R

REMAN-STARTER,3 hole

750L, Tier 3

1шт.

26

87577368C

CORE-STARTER

Return Number

1шт.

27

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

3шт.

28

82012426

KIT

Cover/Solenoid Seal

1шт.
