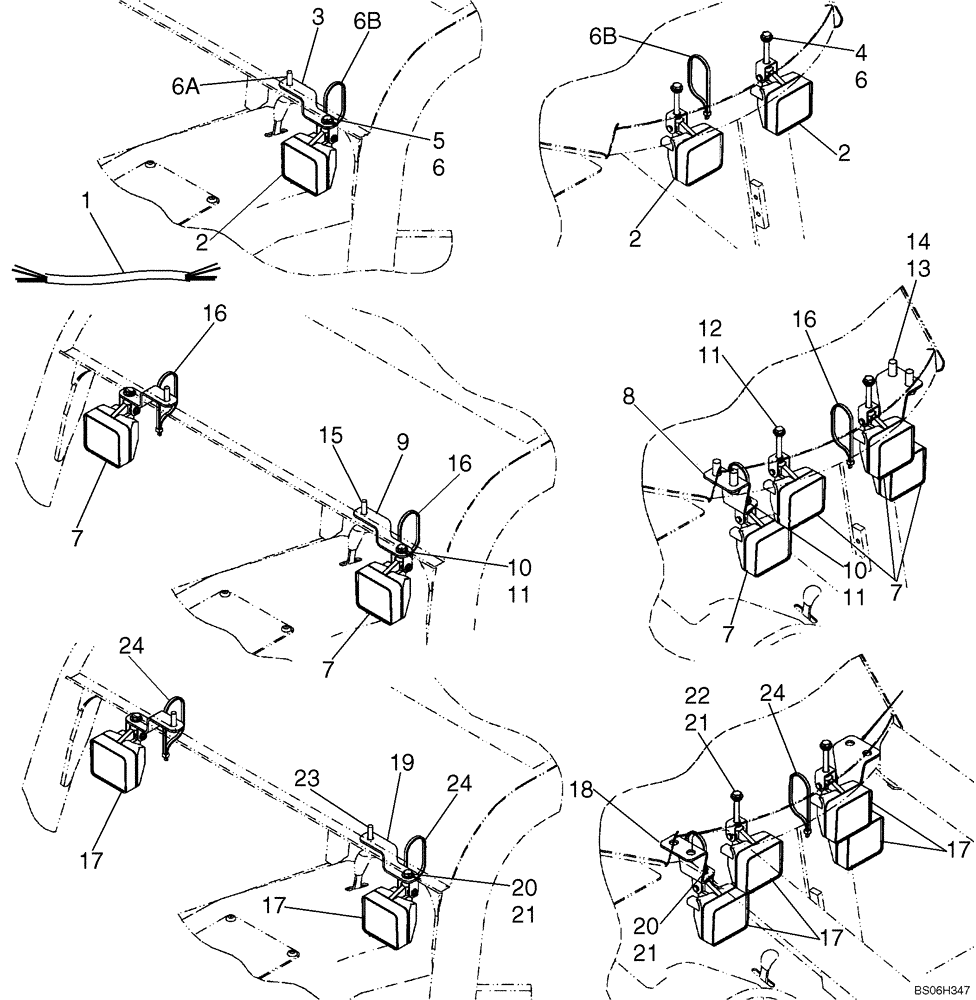

Запчасти Case 750L (04-19) - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS

1

87370161

WIRE HARNESS

Canopy Lamp Harness; If Used; See Figure 04-19 (01)

1шт.

1

87746194

Wire Harness, Canopy Lights; If Used; See Figure 04-19 (02)

1шт.

REF

INSTRUCTION

STANDARD CANOPY LIGHT PACKAGE

1шт.

2

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Light Assy, 12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Heavy Duty H-3 Bulb; (2 Front/1Rear)

3шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, Heavy Duty H-3

1шт.

2

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

3шт.

3

445105A1

BRACKET

Rear Lamp Bracket

1шт.

4

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

6a

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

1шт.

6b

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

REF

INSTRUCTION

CANOPY WORK LIGHTS WITHOUT SWEEPS

1шт.

7

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Light Assy, 12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Heavy Duty H-3 Bulb; (2 Front/1Rear)

6шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, Heavy Duty H-3

1шт.

8

87563197

BRACKET

Front Lamp Bracket

2шт.

9

445105A1

BRACKET

Rear Lamp Bracket

2шт.

10

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

12

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

15

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

REF

INSTRUCTION

CANOPY WORK LIGHTS WITH SWEEPS

1шт.

17

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Light Assy, 12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Heavy Duty H-3 Bulb; (2 Front/1Rear)

6шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, Heavy Duty H-3

1шт.

18

87563197

BRACKET

Front Lamp Bracket; Uses Existing Sweep Hardware

2шт.

19

445105A1

BRACKET

Rear Lamp Bracket

2шт.

20

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

22

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

23

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.
