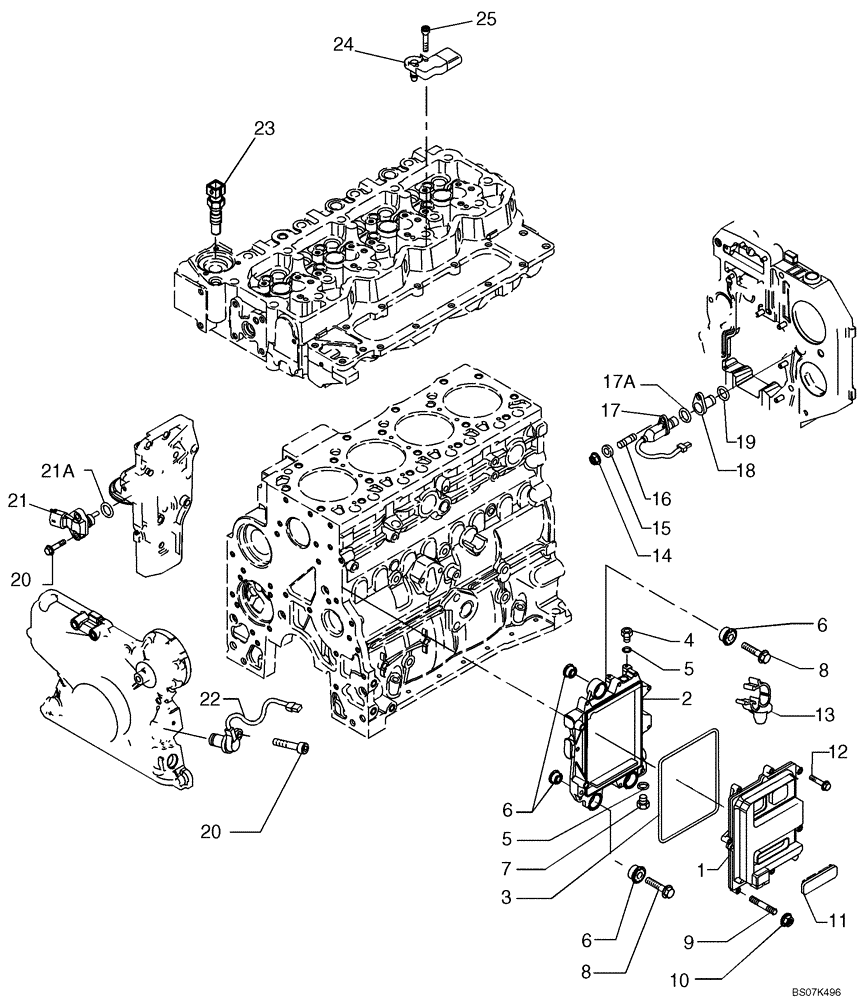

Запчасти Case 750L (03-09) - FUEL INJECTION SYSTEM - MODULE, ENGINE CONTROL (03) - FUEL SYSTEM

1

2854594

ECU

1шт.

1

2854594R

REMAN-MODULE

Remanufactured Electronic Control Unit

1шт.

1

2854594C

CORE-MODULE

CORE-MODUL Return Number, ELECTRONIC CONTROL UNIT

1шт.

2854595

BRACKET

Electronic Unit Mounting, Incl. Refs. 2 - 7

1шт.

2

2854596

BRACKET

Support, Electronic Unit

1шт.

3

2854079

GASKET,6.45mm Thk

1шт.

4

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

M12 x 1.5

1шт.

5

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

2шт.

6

2855150

INSULATOR BLOCK

Stop

6шт.

7

4890964

FITTING,M12 x 1.5

1шт.

8

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

9

2854593

STUD

1шт.

10

4899057

FLANGE NUT,M6

1шт.

11

2852825

PLUG,100mm x 40mm L

1шт.

12

2854083

BOLT,Flng, M6 x 1 x 30mm

7шт.

13

2852486

CABLE CLIP

2шт.

14

2854282

NUT,M6 x 1

1шт.

15

4899124

WASHER

1шт.

16

4895157

STUD

1шт.

17

4890190

SENSOR

Speed, Incl. Ref. 17A

1шт.

17a

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17 x 1.78 mm

1шт.

18

4892255

HOUSING

Sender Unit

1шт.

19

14453881

O-RING,23.52mm ID x 1.78" Width

1шт.

20

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

21

4890193

SENSOR

Temperature, Incl. Ref. 21A

1шт.

21a

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

22

4890189

SENSOR

Speed

1шт.

23

4897224

SENSOR

Temperature

1шт.

24

2852821

SENSOR

ECM; Boost/Air Temperature

1шт.

25

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.
