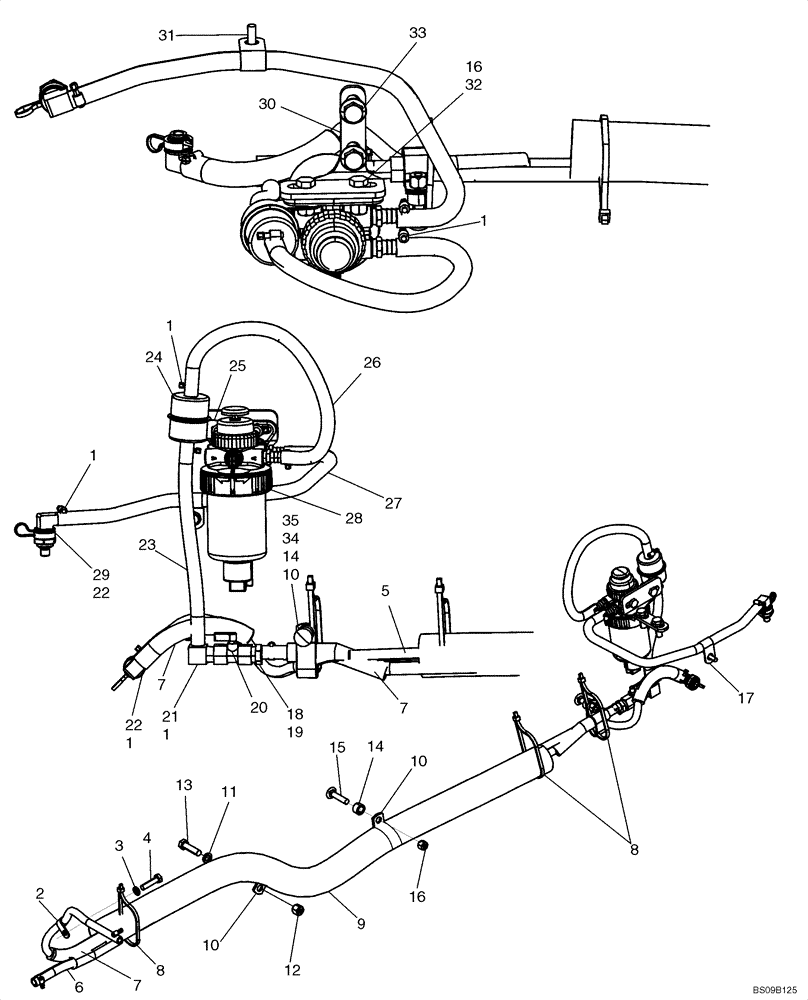

Запчасти Case 750L (03-05) - FUEL LINES (IF USED) (03) - FUEL SYSTEM

REF

INSTRUCTION

This Application Uses A In Line Filter, Strainer; For Other Options See Figure 03-05 (01)

1шт.

1

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

10шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

5

87443910

FUEL HOSE,9.53 mm ID x 2185.00 mm, SAE 30R2 or SAE 30R7

Fuel Return; Cut From S118400X

1шт.

6

87603661

FUEL HOSE,12.70 mm ID x 1626.00 mm, SAE 30R2 or SAE 30R7

Supply; Cut from S118466X

1шт.

7

87310535

SLEEVE

200 mm

4шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

9

87340827

SLEEVE

1350 mm

1шт.

10

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

3шт.

11

892-11012

LOCK WASHER,M12

1шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

13

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

14

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

2шт.

15

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

17

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

18

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

1шт.

19

345-147

Sealant

2шт.

20

86984713

SHUT-OFF VALVE

One Way

1шт.

21

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

22

87442270

FITTING

Includes 87445405, O-Ring

2шт.

87445405

O-RING

1шт.

23

87709098

FUEL HOSE,12.70 mm ID x 280.00 mm

Fuel Supply; Cut From S118466X

1шт.

24

194199A1

FUEL FILTER

In-Line

1шт.

25

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

26

87620928

FUEL HOSE,12.70 mm ID x 436.00 mm, SAE 30R2 OR SAE 30R7 TYPE1

Fuel Supply; Cut From S118466X

1шт.

27

87606664

FUEL HOSE,12.70 mm ID x 558.00 mm, SAE 30R2 or SAE 30R7

558 mm (22 in); Fuel Supply; Cut From S118466X

1шт.

28

87677804

FILTER ASSY

Water Separator Without Heater; Uses 87803445 Filter Element

1шт.

87803445

FUEL FILTER,79.2mm OD x 4.3" L, 30 Microns

Filter Element

1шт.

87612475

SENSOR

Water In Fuel Sensor

1шт.

29

8602557

FITTING,M12 x 1.5

1шт.

30

87603659

MOUNTING PARTS

BRACKET, Water Seperator

1шт.

31

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

1шт.

32

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

33

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

If Used

1шт.

35

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

If Used

1шт.
