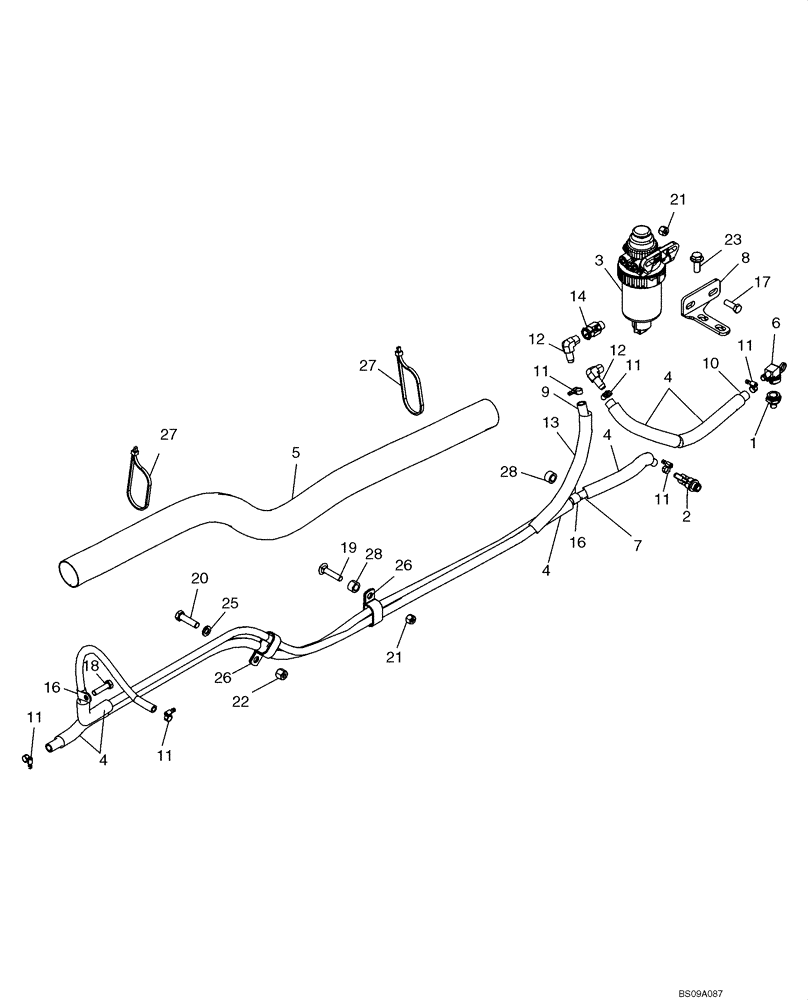

Запчасти Case 750L (03-05[01]) - FUEL LINES (IF USED) (03) - FUEL SYSTEM

REF

INSTRUCTION

This Application Does Not Use A In Line Filter, Strainer; For Other Options See Figure 03-05

1шт.

1

8602557

FITTING,M12 x 1.5

1шт.

2

8605735

90 ELBOW

Includes 87445405, O-Ring

1шт.

87445405

O-RING

1шт.

3

84164617

FILTER ASSY

Water Separator Without Heater; Uses 87803445 Filter Element

1шт.

87803445

FUEL FILTER,79.2mm OD x 4.3" L, 30 Microns

Filter Element

1шт.

4

87310535

SLEEVE

200 mm

6шт.

5

87340827

SLEEVE

1350 mm

1шт.

6

87442270

FITTING

Includes 87445405, O-Ring

1шт.

87445405

O-RING

1шт.

7

87443910

FUEL HOSE,9.53 mm ID x 2185.00 mm, SAE 30R2 or SAE 30R7

Fuel Return; Cut From S118400X

1шт.

8

87603659

MOUNTING PARTS

Bracket

1шт.

9

87603661

FUEL HOSE,12.70 mm ID x 1626.00 mm, SAE 30R2 or SAE 30R7

Supply; Cut from S118466X

1шт.

10

87754972

FUEL HOSE,12.70 mm ID x 400.00 mm, SAE 30R2 Or SAE 30R7

Fuel Supply; Cut From S118466X

1шт.

11

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

6шт.

12

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

2шт.

13

220275A1

SLEEVE

250 mm

1шт.

14

284721A1

VALVE

Valve, Shut-Off, One Way

1шт.

16

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

18

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

19

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

20

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

23

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

24

892-11010

LOCK WASHER,M10

1шт.

25

892-11012

LOCK WASHER,M12

1шт.

26

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

2шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

28

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

2шт.
