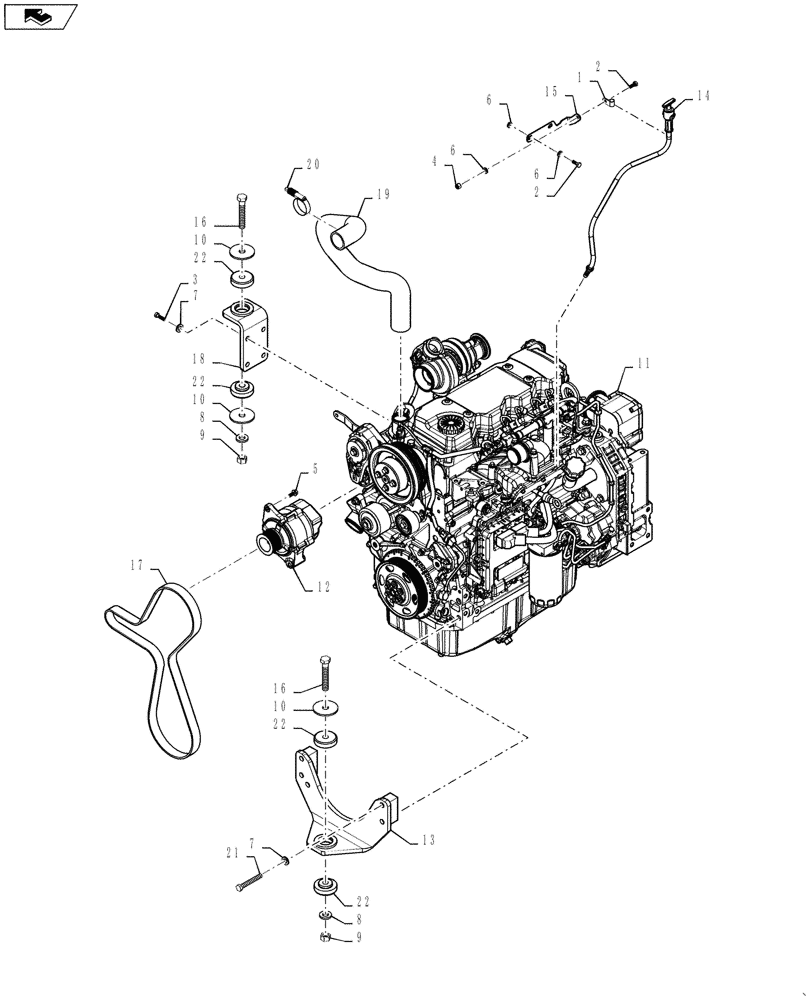

Запчасти Case 750L (02-42) - NEF ENGINE INSTALLATION (02) - ENGINE

1

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

1шт.

6

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

10шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

8

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

3шт.

9

100020

NUT,M16 x 2.0, Cl 8

3шт.

10

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

5шт.

11

87731173

ENGINE ASSEMBLY,69kW, 4.5L, 4 Cylinders, W/ Turbocharger

90 hp (67 kw), 4 Cyl. Turbocharged Engine

1шт.

11

87731173ER

REMAN-REPLACEMENT EN

750L w/NEF Tier 3, 4 Cyl., 4 Valve, 90 HP (1/08)

1шт.

11

87731173EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

12

87422777

ALTERNATOR,12V, 90A, W/ Pulley

1шт.

12

87422777R

REMAN-ALTERNATOR

Reman for New PN 87422777

1шт.

12

87422777C

CORE-ALTERNATOR

Return Number

1шт.

13

87432314

ENGINE MOUNT

Front

1шт.

14

87471541

DIPSTICK

1шт.

15

87472866

BRACKET

Dipstick Mounting

1шт.

16

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

3шт.

17

87564117

V-BELT,27.92 mm W x 1778.00 mm L, 8 Ribs

1шт.

18

87608409

ENGINE MOUNT

Rear

2шт.

19

87611664

HOSE

Upper Radiator

1шт.

20

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

21

A171690

BOLT

4шт.

22

R49482

RUBBER MOUNTING

6шт.
