(02-39) - COOLING SYSTEM - ENGINE

Запчасти Case 750L (02-39) - COOLING SYSTEM - ENGINE (02) - ENGINE

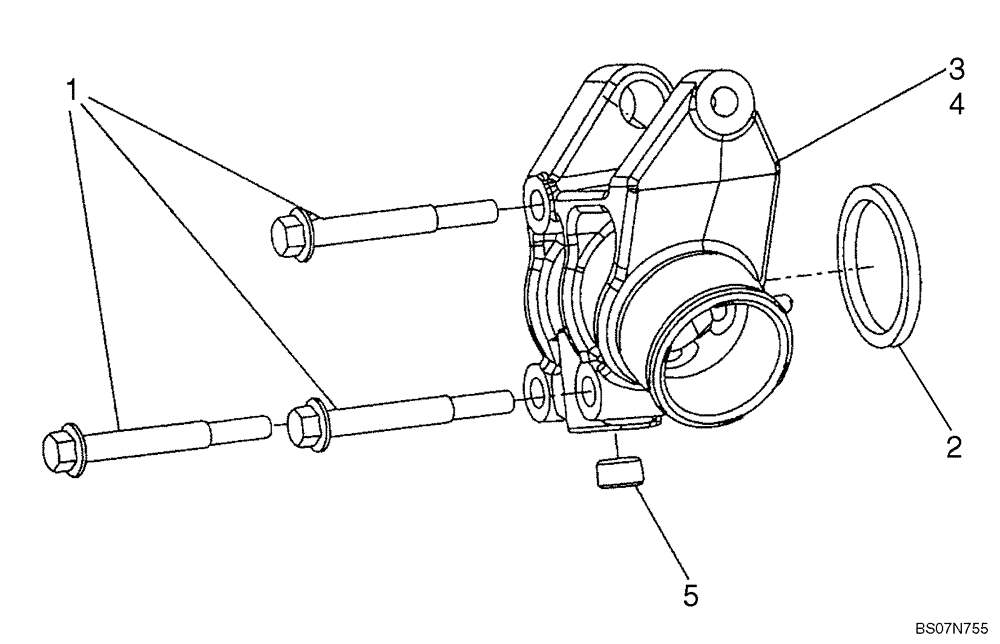

Схема запчастей Case 750L - (02-39) - COOLING SYSTEM - ENGINE (02) - ENGINE
3
1
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2855776

SUPPORT

Incl. Ref. 4

1шт.

4

2830894

DOWEL,.25" OD x .625" L

Not Illustrated

2шт.

5

2852511

PLUG,R3/8" - 18 NPTF, M8, 12.7mm L

Threaded

1шт.

6

4895623

HEX SOCKET PLUG,M16 x 1.5

Compressor Coolant Plumbing, Not Illustrated

1шт.

7

4893036

PIPE PLUG,3/4"-14 NPTF

Compressor Coolant Plumbing, Not Illustrated

1шт.
