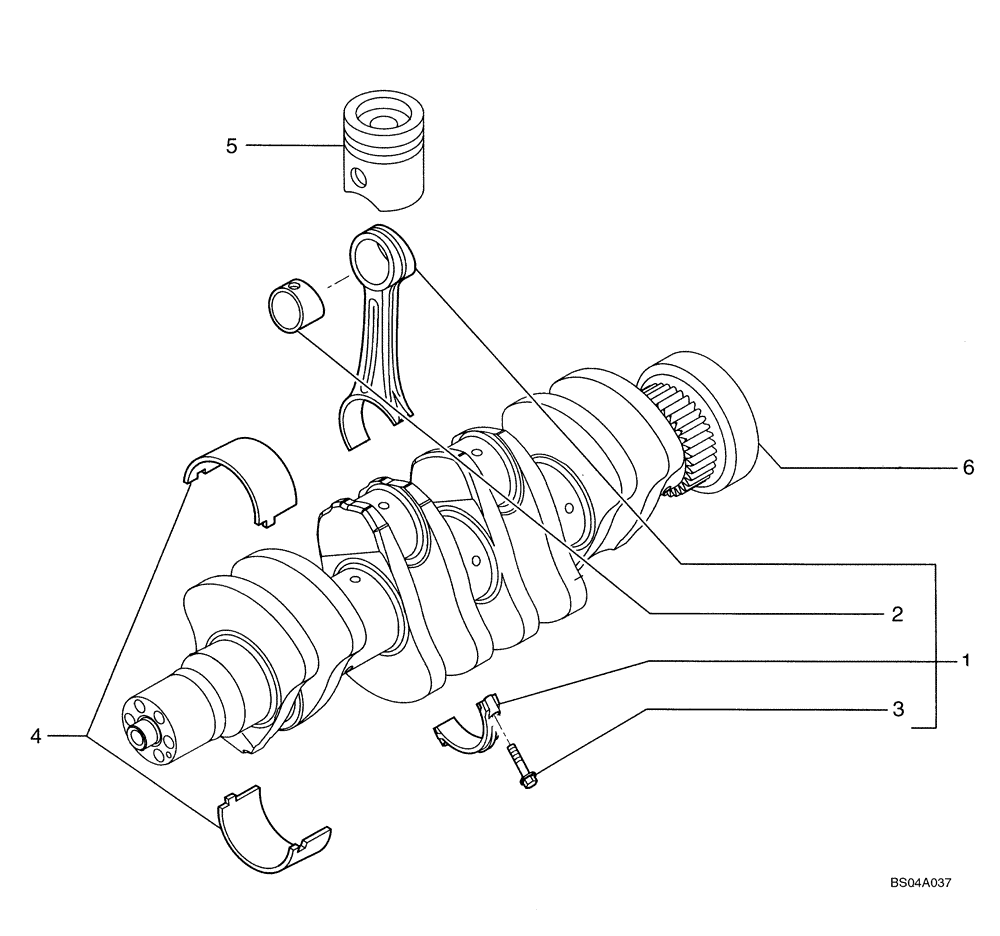

Запчасти Case 750L (02-36) - PISTONS - CONNECTING ROD (02) - ENGINE

1

2831298

CONNECTING ROD

Incl. Ref 2, 3

4шт.

2831298R

REMAN-CONNECTING ROD

750L TIER 3 ( 1/08 - )

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

2856309

CRANKSHAFT BEARING

BEARING, CRANKSHAFT

4шт.

4

4892715

BEARING LINER

BEARING, CON. ROD

4шт.

5

REF

INSTRUCTION

PISTON; See Figure 02-35

1шт.

6

REF

INSTRUCTION

CRANKSHAFT; See Figure 02-22

1шт.
