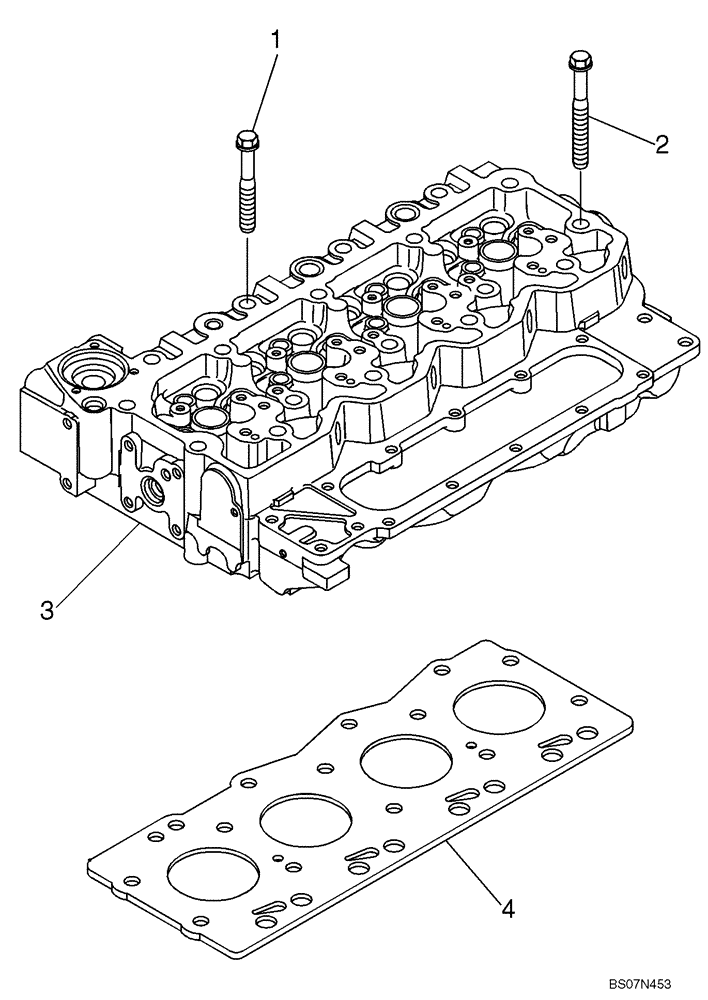

Запчасти Case 750L (02-23) - CYLINDER HEAD (02) - ENGINE

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

Hex Flange Hd Cap, M12 x 130

8шт.

2

4891025

SCREW,Flng, M12 x 1.75 x 150mm

Hex Flange Hd Cap, M12 x 150

10шт.

3

87536218

CYLINDER HEAD,4 Cylinders

See Figure 02-24

1шт.

87536218R

REMAN-CYLINDER HEAD

750L TIER 3 (1/08-)

1шт.

87536218C

CORE-CYLINDER HEAD

Return Number

1шт.

4

2830706

CYLINDER HEAD GASKET,1.25mm Thk

1.25 mm thk, If Used

1шт.

4

2830707

CYLINDER HEAD GASKET,1.15mm Thk

1.15 mm thk, If Used

1шт.

5

4895078

PIPE PLUG,1/2"-14

Not Illustrated

2шт.

6

4893036

PIPE PLUG,3/4"-14 NPTF

Not Illustrated

1шт.
