Запчасти Case 750L (02-22) - CRANKSHAFT (02) - ENGINE

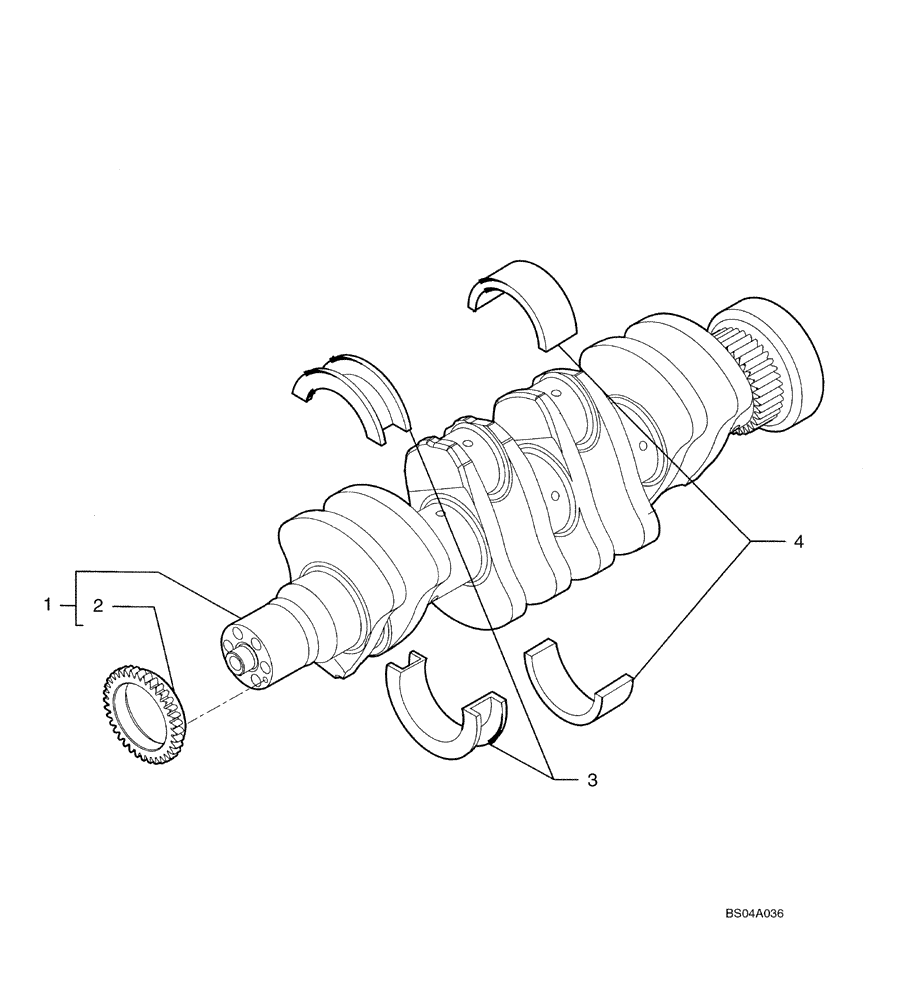

Схема запчастей Case 750L - (02-22) - CRANKSHAFT (02) - ENGINE
3
2
4
1

Артикул

Название

Примечание

Количество

1

2853822

CRANKSHAFT

Incl. Ref 2, 5

1шт.

1

2853822R

REMAN-CRANKSHAFT

Remanufactured Crankshaft;

1шт.

1

2853822C

CORE-CRANKSHAFT

Return Number

1шт.

2

4893386

GEAR,36 T

1шт.

3

2853816

BEARING HALF

Thrust Bearing Kit; STD.

1шт.

3

4895414

BEARING HALF

1шт.

3

2855020

CRANKSHAFT BEARING,14.45 mm

Thrust Bearing Kit; -0.25

1шт.

3

2855021

CRANKSHAFT BEARING

Thrust Bearing Kit; -0.5

1шт.

3

2855022

CRANKSHAFT BEARING,16.15 mm

Thrust Bearing Kit; -0.75

1шт.

3

2855023

CRANKSHAFT BEARING,16.15 mm

Thrust Bearing Kit; -1

1шт.

4

2853815

BEARING HALF

Main Bearing Kit; STD.

4шт.

4

2855016

CRANKSHAFT BEARING,14.45 mm

Main Bearing Kit; -0.25

4шт.

4

2855017

CRANKSHAFT BEARING,14.45 mm

Main Bearing Kit; -0.5

4шт.

4

2855018

CRANKSHAFT BEARING,14.45 mm

Main Bearing Kit; -0.75

4шт.

4

2855019

CRANKSHAFT BEARING,14.45 mm

Main Bearing Kit; -1

4шт.

4

4895017

BEARING HALF

Main, Std.

1шт.

5

4899046

DOWEL,M6 x 9 L

Not Illustrated

1шт.

Выбрано товаров: 17
