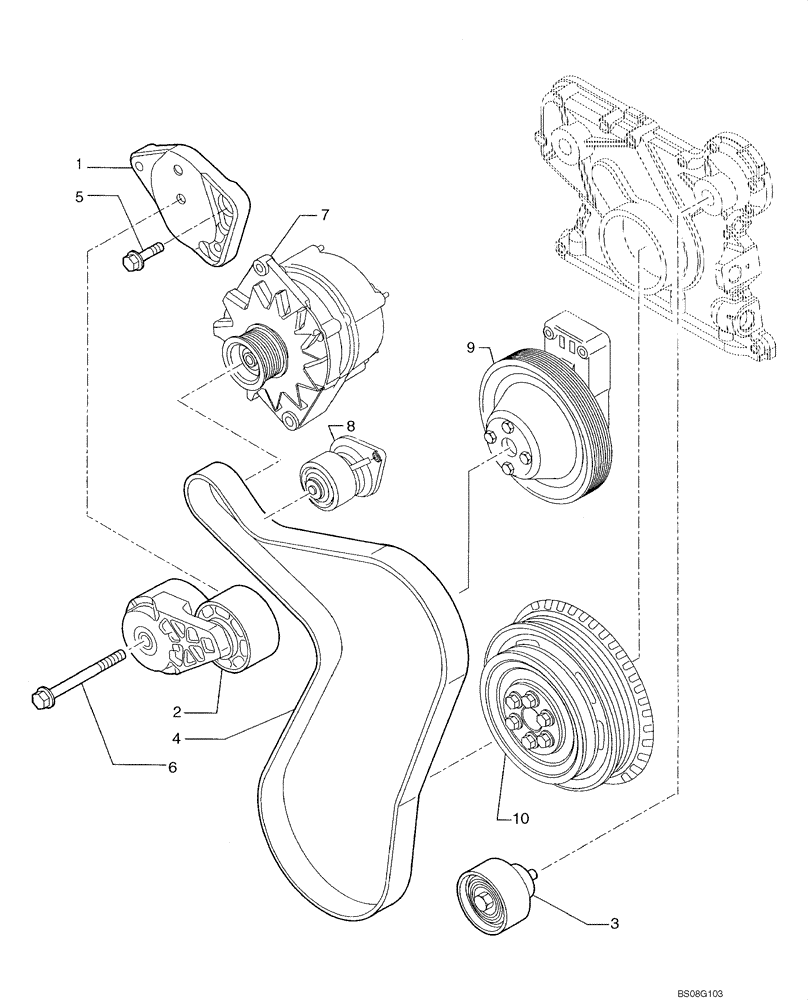

Запчасти Case 750L (02-19) - WATER PUMP - CONTROL (02) - ENGINE

1

2853207

BRACKET

Support Belt Tensioner

1шт.

2

2853206

BELT TENSIONER

1шт.

3

2852245

PULLEY,65mm OD

1шт.

4

REF

INSTRUCTION

BELT; See Figure 02-02

1шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

Flange, M8 x 30

2шт.

6

16592925

SCREW,M10 x 1.5 x 80mm

Flange, M10 x 1.5 x 80

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-18

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-02

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-27

1шт.
