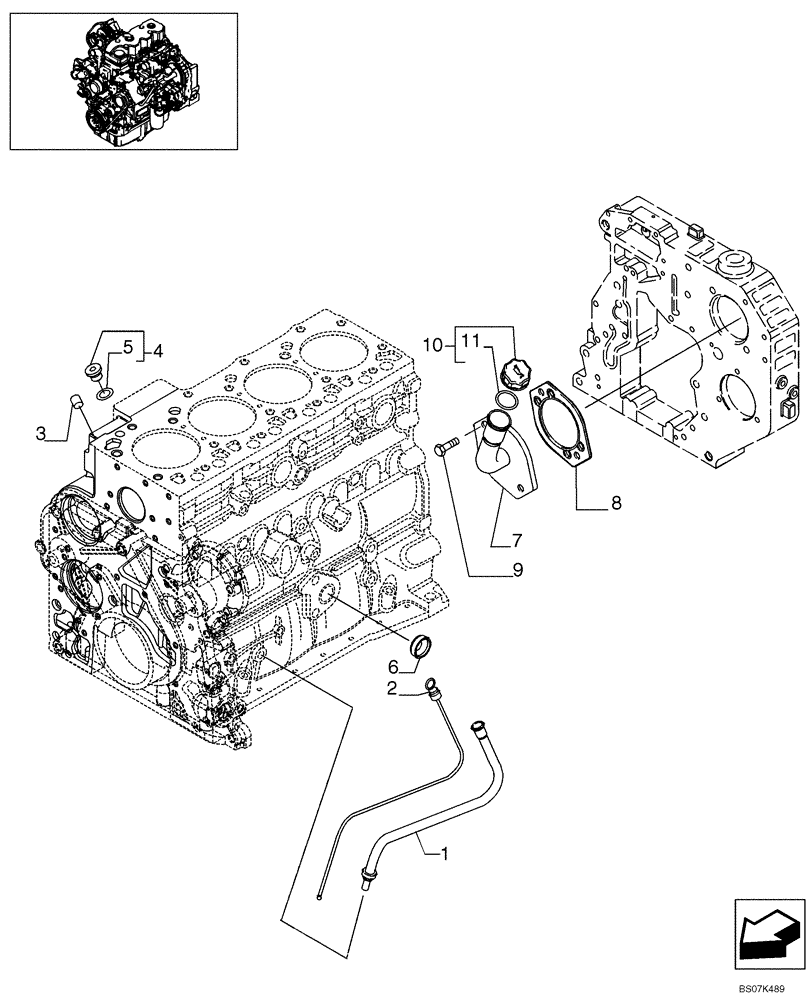

Запчасти Case 750L (02-10) - ENGINE OIL DIPSTICK (02) - ENGINE

2855812

DIPSTICK

Incl. 1, 2

1шт.

1

2855813

TUBE

Oil Fill

1шт.

2

2855815

DIPSTICK

1шт.

3

4895406

EXPANSION PLUG,9.8mm OD

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

Incl. Ref 5

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

4895037

EXPANSION PLUG,32.03mm

1шт.

7

2855787

TUBE,169.3, 160 mm Length

1шт.

8

4896897

GASKET,1.35mm Thk

1шт.

9

2856035

SCREW,Flng, M12 x 30mm, Cl 8.8

2шт.

10

2853410

FILLER CAP,Female

Incl. 11

1шт.

11

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.

12

2852485

BRACKET

Not Illustrated

1шт.
