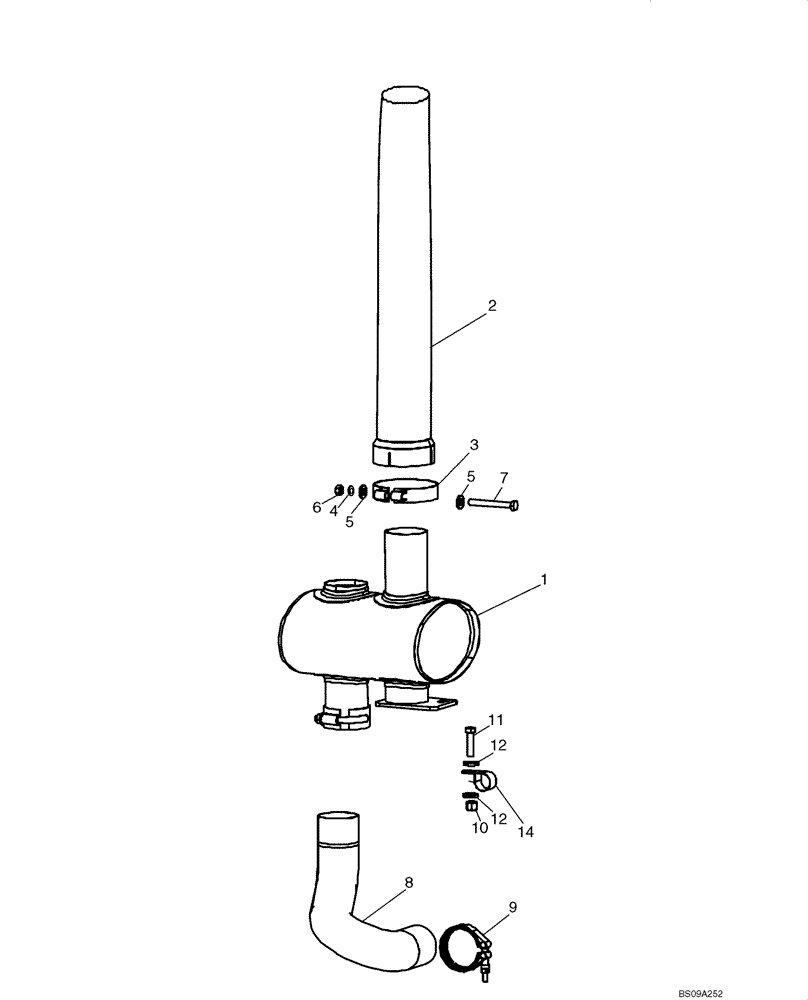

Запчасти Case 750L (02-08) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

87740682

MUFFLER

MUFFLER, Includes Clamp; Muffler is Inserted 40mm in the Elbow

1шт.

2

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

3

R27699

CLAMP,114.3mm

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

8

87604763

EXHAUST SYSTEM PIPE

ELBOW, Exhaust Outlet

1шт.

9

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

11

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

14

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.
