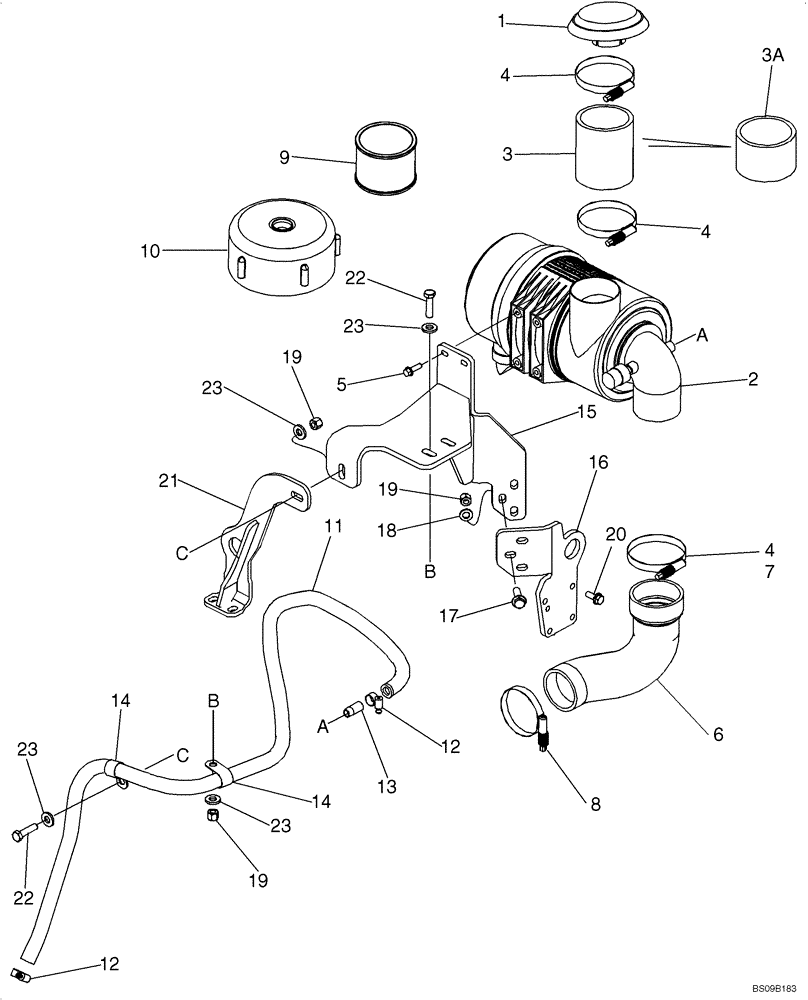

Запчасти Case 750L (02-06) - AIR CLEANER - MOUNTING (02) - ENGINE

1

A170235

CAP

Includes Clamp

1шт.

2

87434701

AIR CLEANER

See Figure 02-07

1шт.

3

87603662

RADIATOR HOSE,90.00 mm ID x 122.00 mm, SAE J20

Air Cleaner, Upper; No Longer Available, Order 87757547 Hose, Ref3A

1шт.

3a

87757547

HOSE,96.00 mm ID x 76.00 mm, SAE J20

1шт.

4

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

If Used

2шт.

4

L124635

HOSE CLAMP

If Used

2шт.

5

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

7

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

If Used

1шт.

6

87604769

RADIATOR HOSE,73.30 mm ID, 88.90 mm ID x 181.00 mm, SAE J20

Outlet; Lower

1шт.

8

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

If Used

1шт.

8

L127771

CLAMP,107.95mm - 130.18mm

If Used

2шт.

9

86988017

INSERT

Rubber. Includes Clamps

1шт.

10

86988018

AIR INTAKE

Includes Clamp; Component Parts Not Serviced Separately; If Used

1шт.

11

87651817

HOSE,19.05 mm ID x 1430.00 mm, SAE 30R2

CCV

1шт.

12

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

13

L17985

FITTING,3/8" - 18 NPT

1шт.

14

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

2шт.

15

87740688

BRACKET

1шт.

16

84173866

1шт.

17

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

3шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

20

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

21

87747960

BRACKET

1шт.

22

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.
