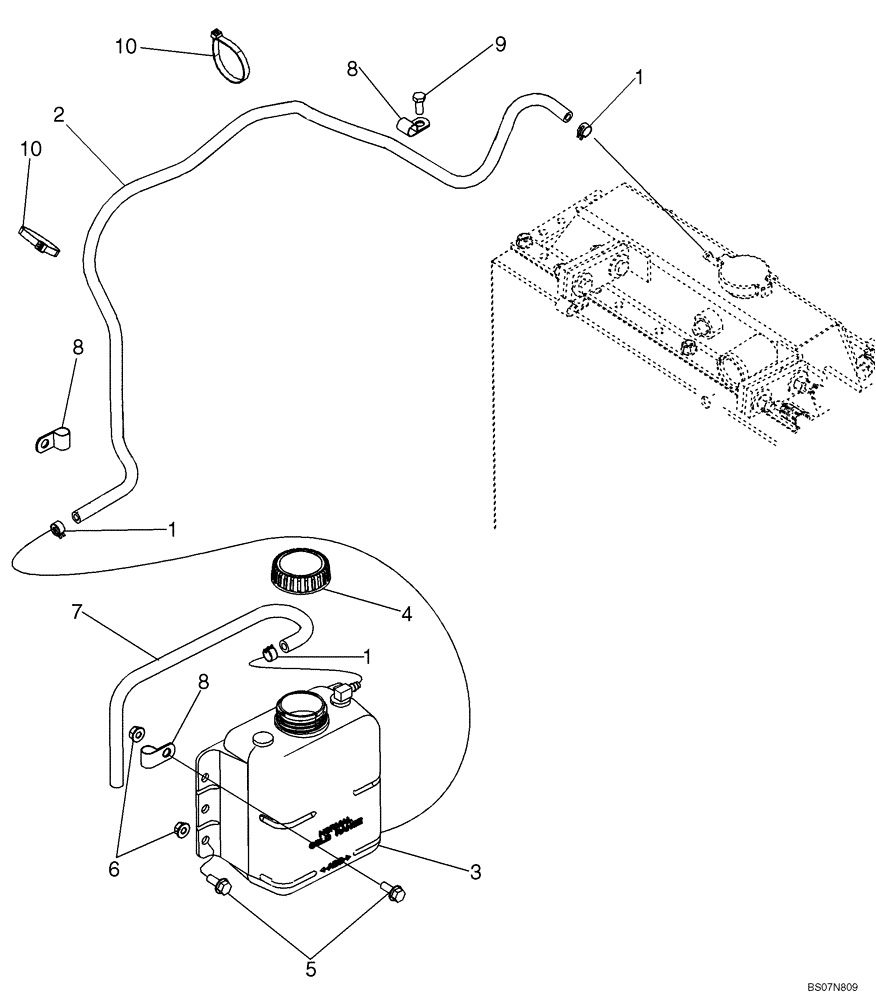

Запчасти Case 750L (02-05) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

2

87611674

PLASTIC-RUBBER TUBE,7.9 mm ID x 1285 mm L

HOSE, 1285 mm (50 5/8 in); Cut from L126767; Radiator to Coolant Reservoir

1шт.

3

L127093

RESERVOIR

1шт.

4

A184079

CAP

Non-Vented With Tether

1шт.

5

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

6

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

7

433784A1

HOSE,7.90 mm ID x 445.00 mm, SAE J30 or SAE 20R4 Class D1

Cut From Bulk, Overflow, Coolant Recovery

1шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

87406613

CABLE TIE

CABLE STRAP Releasable; If Used

2шт.
