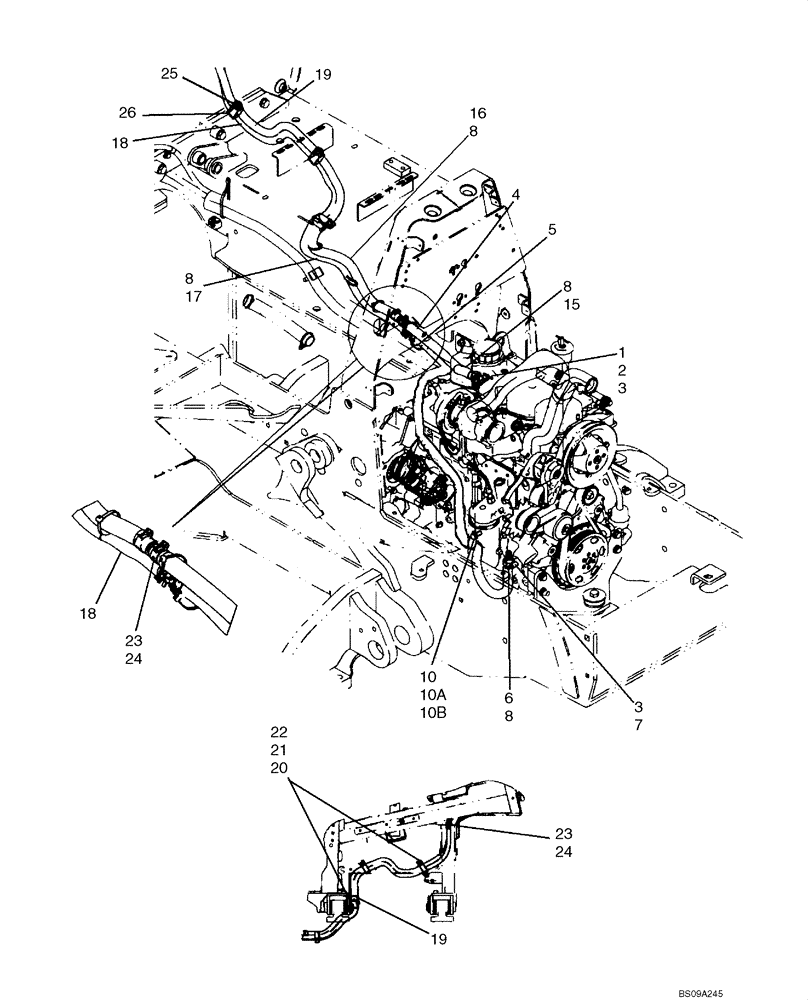

Запчасти Case 750L (09-33) - CAB - HEATING SYSTEM (AT ENGINE) (09) - CHASSIS/ATTACHMENTS

1

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

2

A16764

VALVE

Shut-Off

1шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

4

87608764

Heater Hose; Front Heater Return

1шт.

5

87608765

Heater Hose; Front Heater Supply

1шт.

6

87596719

CONDUIT

Front Heater Supply

1шт.

7

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

Use Loctite 71

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7-8 In Nylon

5шт.

10

515-25254

CLAMP,1", Insul, 1/2" Bolt

Uses (1) 614-12025 Bolt, (1) 892-11012 Washer

2шт.

10a

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

10b

892-11012

LOCK WASHER,M12

2шт.

15

87596718

CONDUIT

Front Heater Return

1шт.

16

87596707

CONDUIT

Rear Heater Supply

1шт.

17

87596705

Conduit; Rear Heater Return

1шт.

18

87607163

HEATER HOSE,15.50 mm ID x 1610.00 mm

Rear Heater Supply

1шт.

19

87607160

HEATER HOSE,15.50 mm ID x 1470.00 mm

Rear Heater Return

1шт.

20

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Insulalted Double

3шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

23

S104739

TUBE,0.625" OD x 3" L

Hose Splice

4шт.

24

1954736C1

HOSE CLAMP,#24

Heater

8шт.

25

829-1310

NUT,M10, Cl 10

1шт.

26

87628325

SUPPORT

BRACKET, Hose Mount;, Serial Range: Fasten-Cab

1шт.
