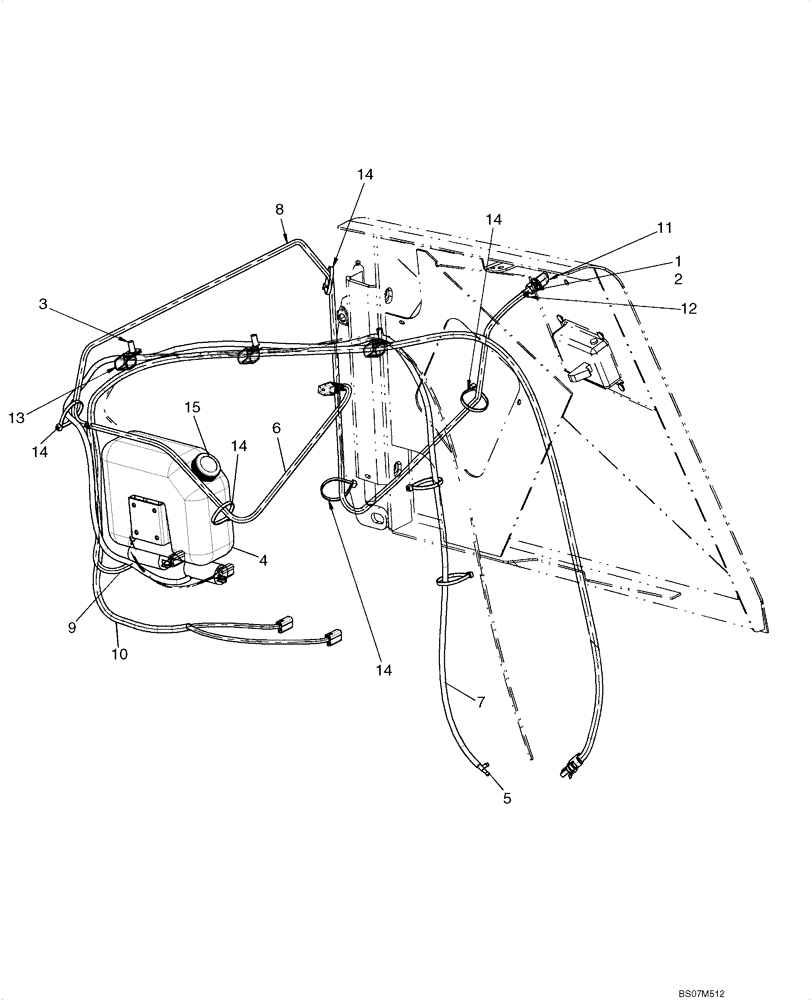

Запчасти Case 750L (09-32) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

1

425-106

NUT,3/8"-16, Cl 5

2шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

905-8020

BOLT,Hex Flg, M8 x 20mm

3шт.

4

87337962

RESERVOIR, WINDSHIEL

1шт.

5

87427778

FITTING,3/16"

1шт.

6

87628340

HOSE WASHER,4.76 mm ID x 660.00 mm

Windshield ; Service from 397154A1 Bulk

1шт.

7

87628341

HOSE WASHER,4.76 mm ID x 2270.00 mm

Cab Feed; Service from 397154A1 Bulk

1шт.

8

87628343

HOSE WASHER,4.76 mm ID x 2000.00 mm

Windshield, Service from 397154A1 Bulk

1шт.

9

87628344

HOSE WASHER,4.76 mm ID x 410.00 mm

Windshield; Service from 397154A1 Bulk

1шт.

10

87699963

WIRE HARNESS

HARNESS, Windshield Washer

1шт.

11

284154A1

NOZZLE,3/8" - 16

2шт.

12

305578A1

CLAMP,7.65mm - 8.76mm

2шт.

13

D47783

CLAMP

3шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

7шт.

15

82036769

FILLER CAP

1шт.
