Запчасти Case 750L (09-25) - CAB - FRAME, MOUNTING AND GRAB HANDLES (09) - CHASSIS/ATTACHMENTS

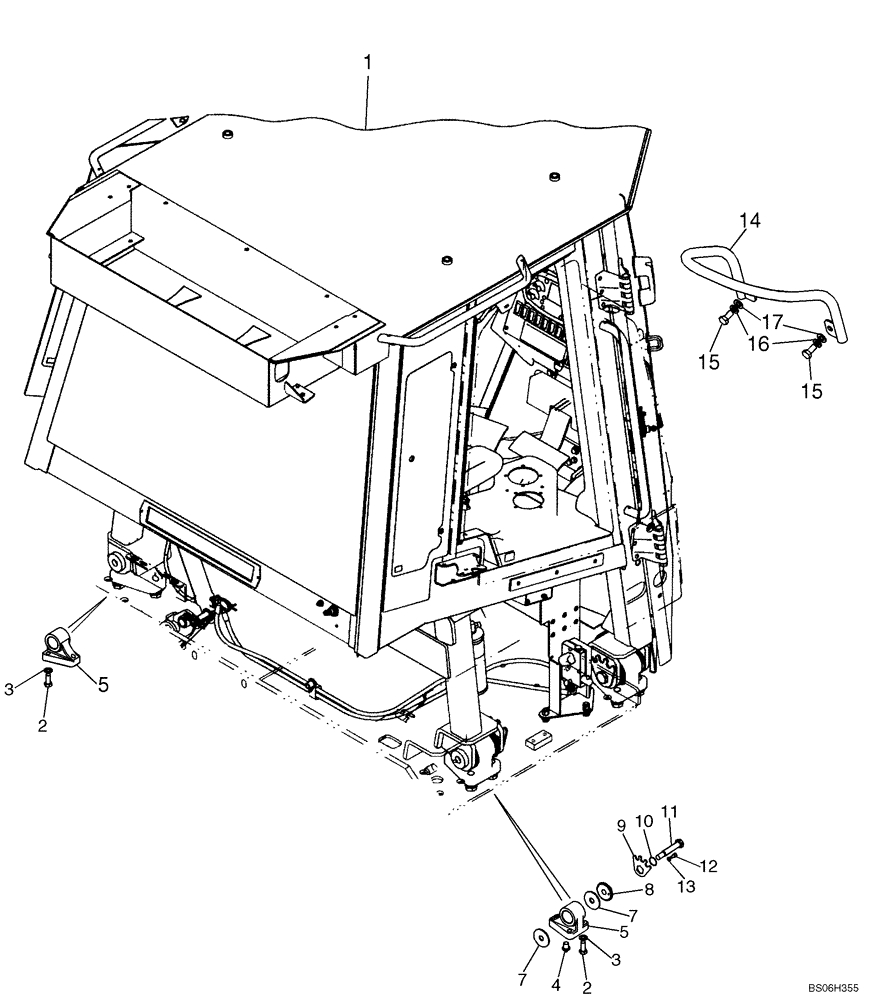

Схема запчастей Case 750L - (09-25) - CAB - FRAME, MOUNTING AND GRAB HANDLES (09) - CHASSIS/ATTACHMENTS
9
3
12
4
15
5
7
13
16
7
15
11
5
2
8
14
1
17
2
10
7

Артикул

Название

Примечание

Количество

87627020

CAB

CAB ASSEMBLY; Includes Frame, Doors, Glass, Consoles, Front Wiper; Order From Machinery Price List

1шт.

1

87615108

FRAME, cab Assembly; Order from Machinery Price List

1шт.

2

11383631

BOLT,Hex, M20 x 1.5 x 50, 10.9, Full Thd

12шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

4

87311743

SPECIAL PIN

Alignment; Right-Hand Side Only, 45.2 mm Long

2шт.

5

86983061

SUPPORT ASSY.

Includes (2) 79060730 Bushings; With Hole For Alignment Pin, Ref 4

4шт.

79060730

BUSHING

2шт.

7

79085441

WASHER,24.6mm ID x 90mm OD x 5mm Thk

8шт.

8

79084966

BUSHING

4шт.

9

79093828

PLATE

4шт.

10

13398976

SNAP RING,M40, Int

4шт.

11

79093830

SCREW,Hex, M24 x 2 x 150mm

4шт.

12

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

448838A1

HANDLE

Grab, Front

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Black 7-8 Inch Nylon

1шт.

Выбрано товаров: 19
