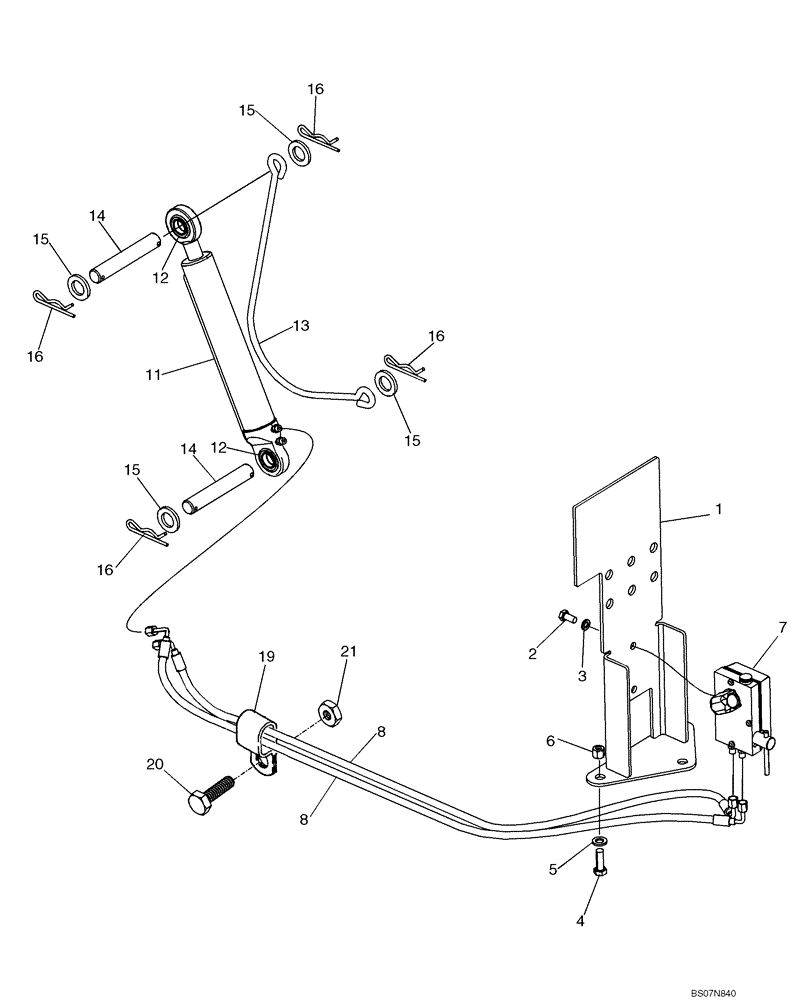

Запчасти Case 750L (09-24) - CAB OR CANOPY - TILT COMPONENTS (09) - CHASSIS/ATTACHMENTS

1

433002A3

BRACKET, SUPPORTING

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

7

76074723

HYDRAULIC PUMP

Hand Pump, Cab or Canopy Tilt; Component Parts Not Serviced Separately

1шт.

8

87442124

HOSE ASSY.

Cab Tlt, 1300 mm (51 - 3/16 in); Replaces 87525891 Hose/A Cab Tilt 1450 mm (57 - 1/8 in) Used On Some Models

2шт.

11

76074722

HYDRAULIC CYLINDER

Lift; Component Parts Not Serviced Separately

1шт.

12

79068258

WASHER

Special

4шт.

13

79093006

CABLE

Cable

1шт.

14

437227A1

PIN

2шт.

15

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

16

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

4шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

19

D49498

CLAMP

Double, 22.2 dia; If Used

1шт.

20

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

If Used

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

If Used

1шт.
