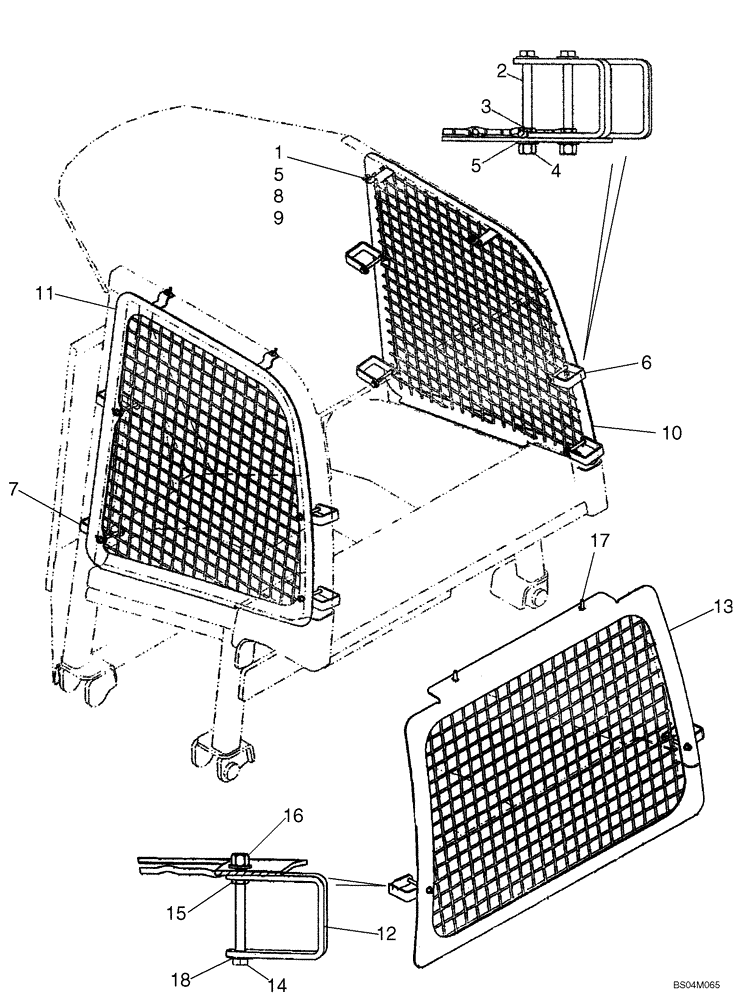

Запчасти Case 750L (09-23) - CANOPY, ROPS - SCREENS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

ROPS SIDE SCREENS

1шт.

1

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

2

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

8шт.

3

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

8шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

20шт.

6

87426206

CLAMP

Side Screen

6шт.

7

87426207

CLAMP

Side Screen

2шт.

8

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

Square, M10

4шт.

9

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

10

445108A3

SCREEN

Right-Hand Side

1шт.

11

445109A3

SCREEN

Left-Hand Side

1шт.

REF

INSTRUCTION

ROPS REAR SCREEN

1шт.

12

87426206

CLAMP

2шт.

13

445103A2

SCREEN

Rear

1шт.

14

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

15

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
