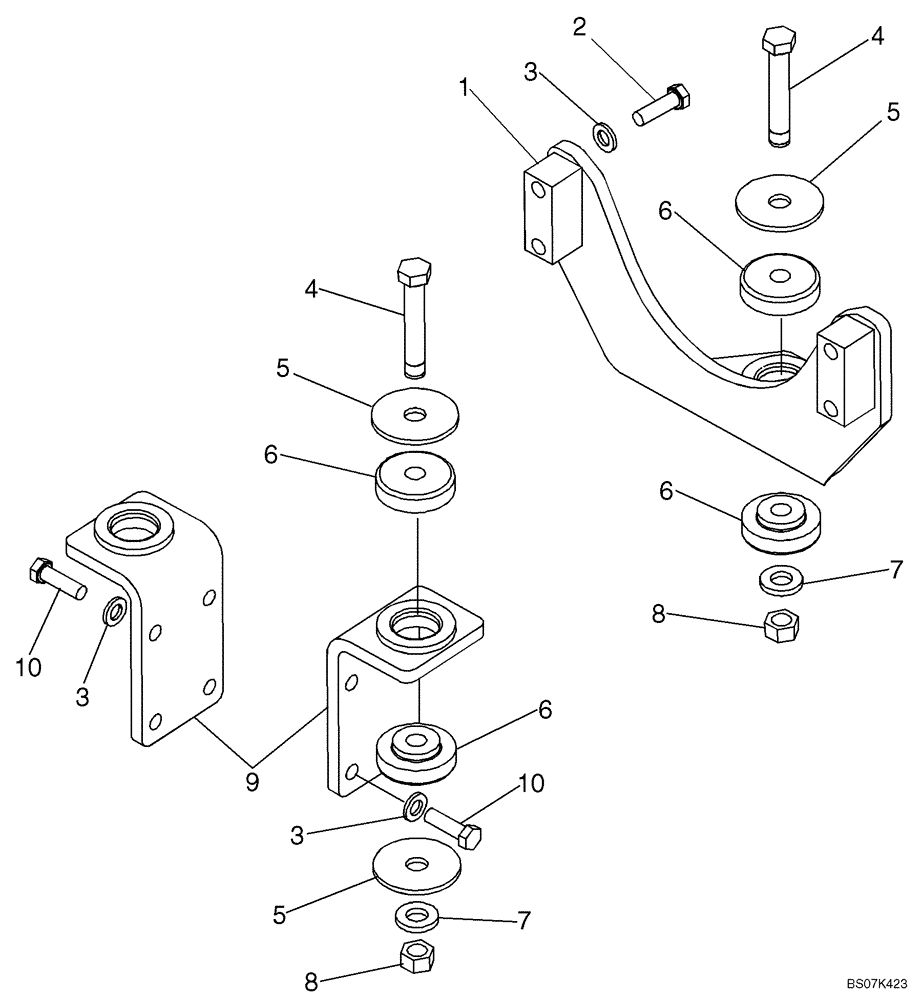

Запчасти Case 750L (02-01) - ENGINE - MOUNTING (02) - ENGINE

1

87432314

ENGINE MOUNT

Bracket, Front

1шт.

2

A171690

BOLT

M10 x 85; 10.9

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

4

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

5шт.

6

R49482

RUBBER MOUNTING

6шт.

7

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

3шт.

8

100020

NUT,M16 x 2.0, Cl 8

3шт.

9

87608409

ENGINE MOUNT

MOUNT, ENGINE, Bracket, Rear

2шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.
