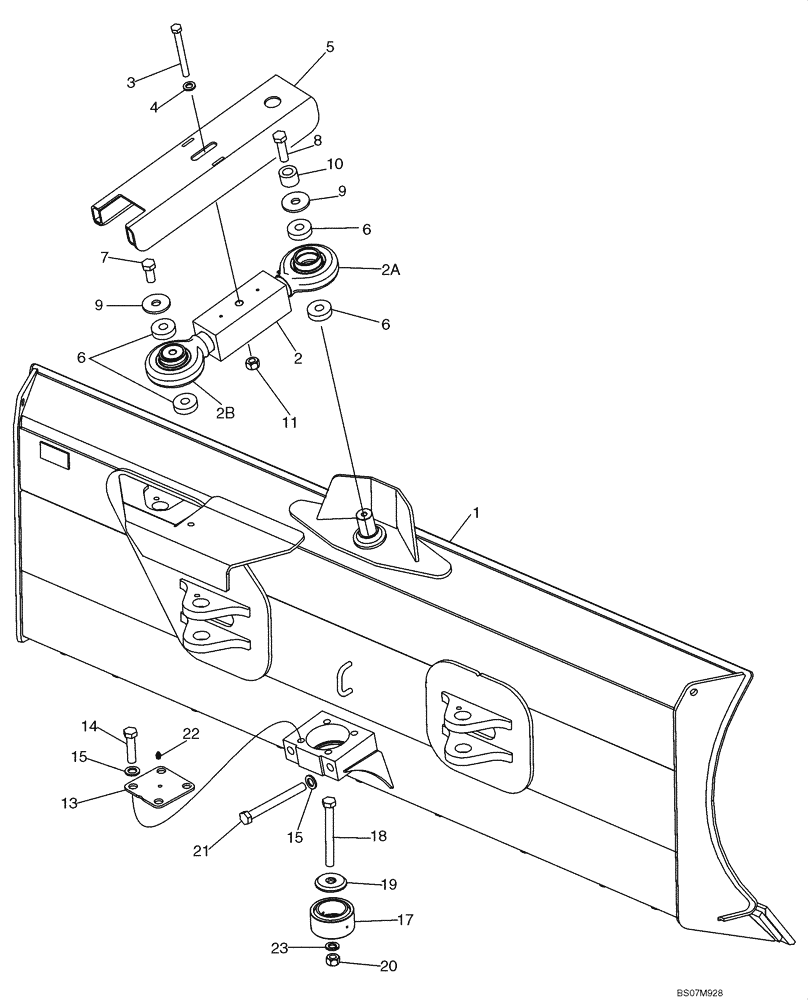

Запчасти Case 750L (09-02) - DOZER BLADE - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

See Figure 09-03 For Dozer Blade Options

1шт.

87311753

LINK ASSY.

Adjustable Link Assy; Pitch; Incl. 2 - 2B

1шт.

2

NSS

NOT SOLD SEPARAT

Connector; Component Part Not Serviced, Order 87311753 Link Assy

1шт.

2a

87311754

BEARING ASSY,44.45 mm ID x 63.88 mm OD x 38.8239 mm

Bearing, Rod End; Left Hand Thread; Includes (1) 219-87 Grease Fitting, (1) 613524C91 Bearing

1шт.

2b

87311755

BEARING ASSY,44.45 mm ID x 63.88 mm OD x 38.8239 mm

Bearing, Rod End; Right Hand Thread; Includes (1) 219-87 Grease Fitting, (1) 613524C91 Bearing

1шт.

3

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

5

87559495

COVER

Cover Assembly Pitch Link, W/ 480 x 208 x 50 mm Slide Channel

1шт.

6

87311756

SPACER, RING,45.26mm ID x 50.8mm OD x 11.9mm L

4шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

8

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

9

895-30103

WASHER,M16 x 56 x 5

2шт.

10

418981A1

SPACER

Mounting

1шт.

11

231-1448

NUT,1/2"-13, GB

1шт.

13

418868A1

COVER PLATE

1шт.

14

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

15

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

17

405892A1

BUSHING,69.85mm ID

Assembly, Block and Bushing

1шт.

18

828-20180

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

1шт.

19

87563622

CUP WASHER

Hardened Washer 13 mm Thk

1шт.

20

829-1420

NUT,M20, Cl 10

1шт.

21

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

23

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.
