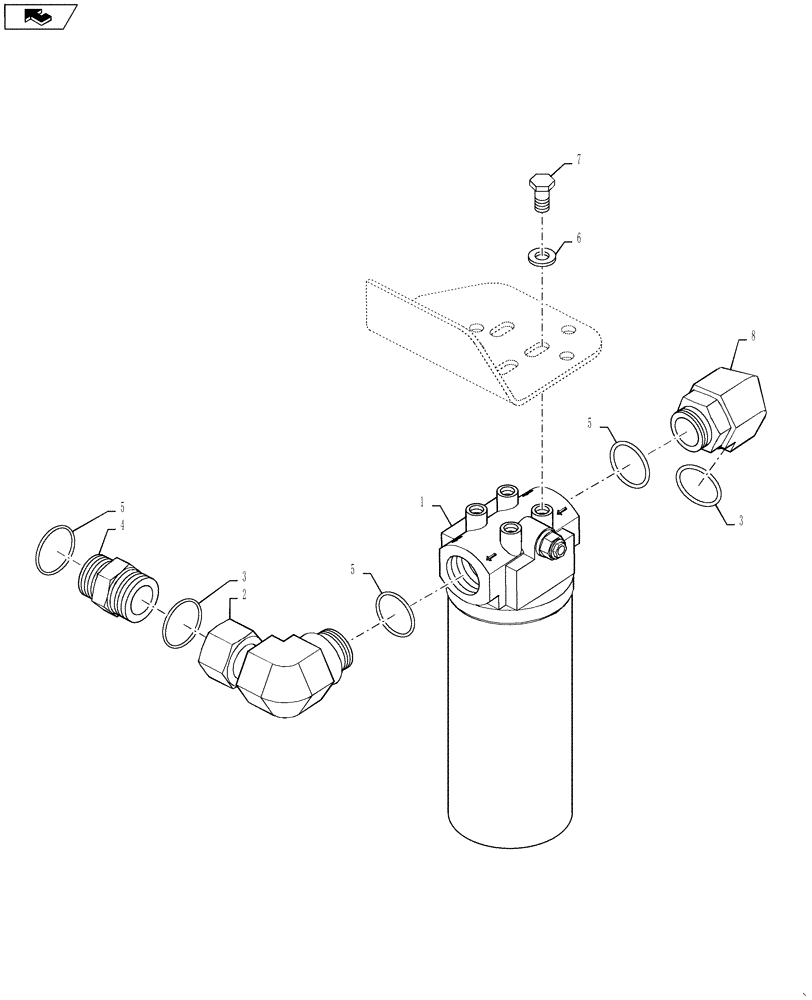

Запчасти Case 750L (08-03[03]) - HYDRAULICS, EQUIPMENT - 6 MICRON FILTER MOUNTING (00) - PICTORIAL INDEX

1

426336A1

FILTER ASSY

6 Micron; See Fig. 06-09

1шт.

2

201-393

ELBOW,90 Degree, 1 7/16"-12 Adj x 1 7/16"-12 Fem Sw, ORFS

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

4

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

5

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

3шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

8

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.
