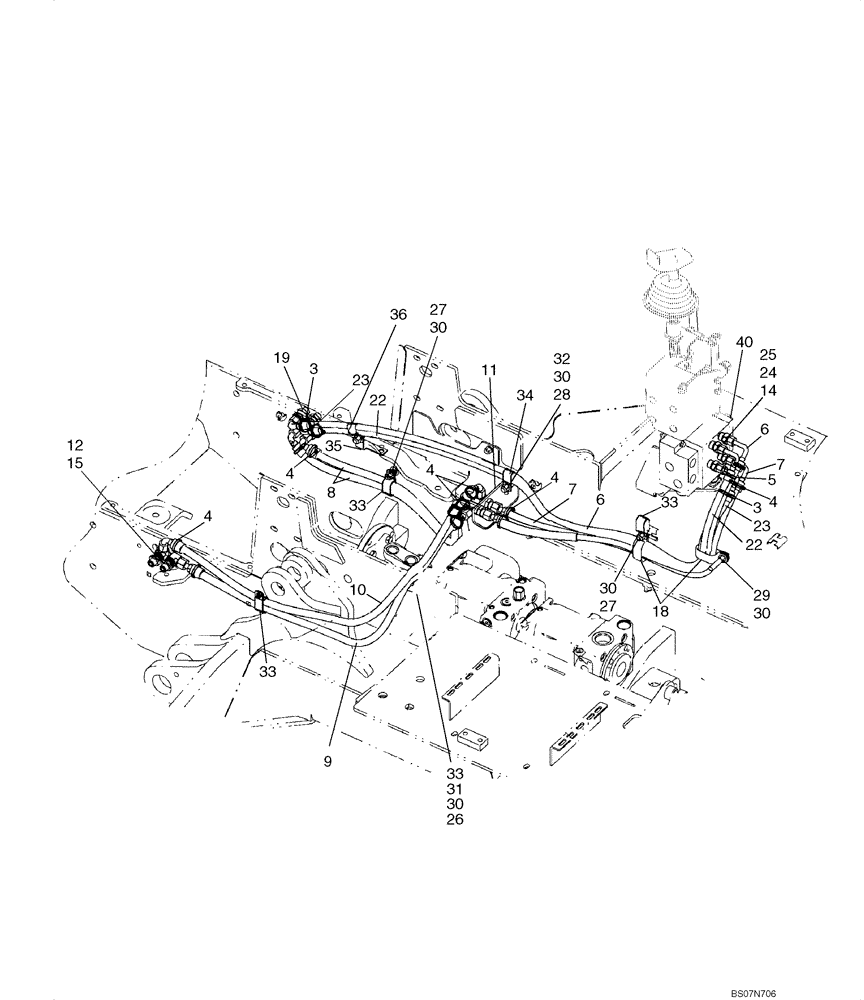

Запчасти Case 750L (08-06) - HYDRAULICS - TILT AND ANGLE CIRCUITS (08) - HYDRAULICS

1

87310535

SLEEVE

200 mm

2шт.

2

87429172

STRAP

Red

5шт.

3

87429173

STRAP

STRAP, Orange

2шт.

4

87429174

STRAP

STRAP, Yellow

6шт.

5

87429175

STRAP

STRAP, Green

2шт.

6

87704189

HOSE ASSY.

HOSE ASSY., RH, Angle - Top Port; 1065 mm (41 - 15/16 in)

1шт.

7

87704191

HOSE ASSY.

HOSE ASSY., LH, Angle - Bottom Port; 1040 mm (40 - 15/16 in)

1шт.

8

87485059

HOSE ASSY.

HOSE ASSY., Angle Crossover; 900 mm (35 - 7/16 in); Replaces 87755478 900mm (35-7/16in) Is Covered by A Nylon Sleeve

2шт.

9

87704194

HOSE ASSY.

HOSE ASSY., Angle Crossover; 1139 mm (44 - 7/8 in)

1шт.

10

87704195

HOSE ASSY.

HOSE ASSY., Angle Crossover; 1232 mm (48 - 9/16 in)

1шт.

11

87704203

BRACKET

BRACKET

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Included in Ref 15

2шт.

13

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes Ref 19

4шт.

14

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Includes Ref 24, 25

4шт.

15

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Includes Ref 12

2шт.

16

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Includes Ref 20

2шт.

17

201-903

TUBE NUT,Blkhd, 13/16"-16

8шт.

18

242999A1

CLAMP

2шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Included in Ref 13

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Included on Ref 16

2шт.

22

436016A1

HOSE ASSY.

RH, Tilt - Top Port; 1810 mm (71 - 5/16 in)

1шт.

23

436017A1

HOSE ASSY.

LH, Tilt - Bottom Port; 1705 mm (67 - 1/8 in)

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End, Included in Ref 14

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal end, Included in Ref 14

1шт.

26

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

1шт.

27

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

2шт.

28

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

29

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

30

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

31

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

32

994-12021

SPACER,3/4" Tube x .840"

1шт.

33

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

5шт.

34

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

5шт.

35

436894A1

BRACKET, SUPPORTING

Hose Ref 22, 23

1шт.

36

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

40

87311632

HYDRAULIC VALVE

Three Spool, See Figure 08-18

1шт.

40

87311631

HYDRAULIC VALVE

Four Spool, See Figure 08-18

1шт.
