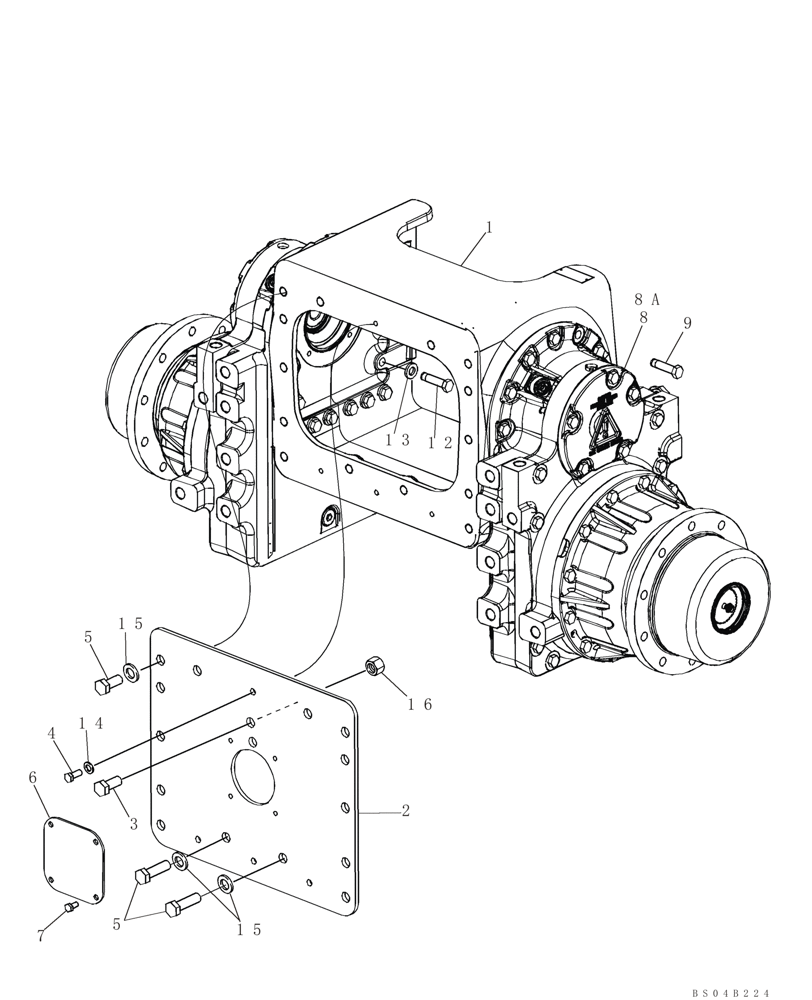

Запчасти Case 750K (06-06) - COVERS - FINAL DRIVE (06) - POWER TRAIN

428233A4

TRANSMISSION

Long Track Models; Incl. Ref 1 - 8, 9 - 13

1шт.

428235A4

Wide Track or Low Ground Pressure Models; Incl. Ref 1 - 7, 8A, 9 - 13

1шт.

1

385201A4

HOUSING

Center Box

1шт.

2

385224A2

COVER PLATE

Rear

1шт.

3

627-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

2шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

5

627-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

16шт.

6

385273A1

COVER PLATE

1шт.

7

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

8

385250A4

DRIVE ASSY.

Final Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; See Figure 06-06, 06-07

2шт.

87724629R

REMAN-AXLE

750K TIER 2 (12/06-), Reman For New P/N 385250A4

2шт.

87724629C

CORE-AXLE

Return Number

1шт.

8a

385251A4

DRIVE ASSY.

Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; See Figure 06-06, 06-07

2шт.

87724630R

REMAN-FINAL DRIVE

750K SERIES 3 CRAWLER TIER 2 (12/06-), Reman for new PN 385251A4

2шт.

87724630C

CORE-FINAL DRIVE

Return Number

1шт.

12

608-16065

BOLT,M16 x 65mm, Cl 10.9

16шт.

13

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

16шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

15

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

16

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

17

608-16040

BOLT,Hex, M16 x 40mm, Cl 10.9

2шт.

18

9841223

PLUG,1-1/16" - 12 ORB

2шт.

19

608-16085

BOLT,Hex, M16 x 85mm, Cl 10.9

11шт.

20

87028191

BOLT,Hex, M16 x 60mm, Cl 10.9, Full Thd

6шт.

21

87028192

BOLT,Hex, M16 x 170mm, Cl 10.9

M16 X 170; 10.9

6шт.
