Запчасти Case 750K (04-22) - GRID HEATER - SYSTEM CONTROL (W/O TEMP. SWITCH CONNNECTIONS; IF USED) (04) - ELECTRICAL SYSTEMS

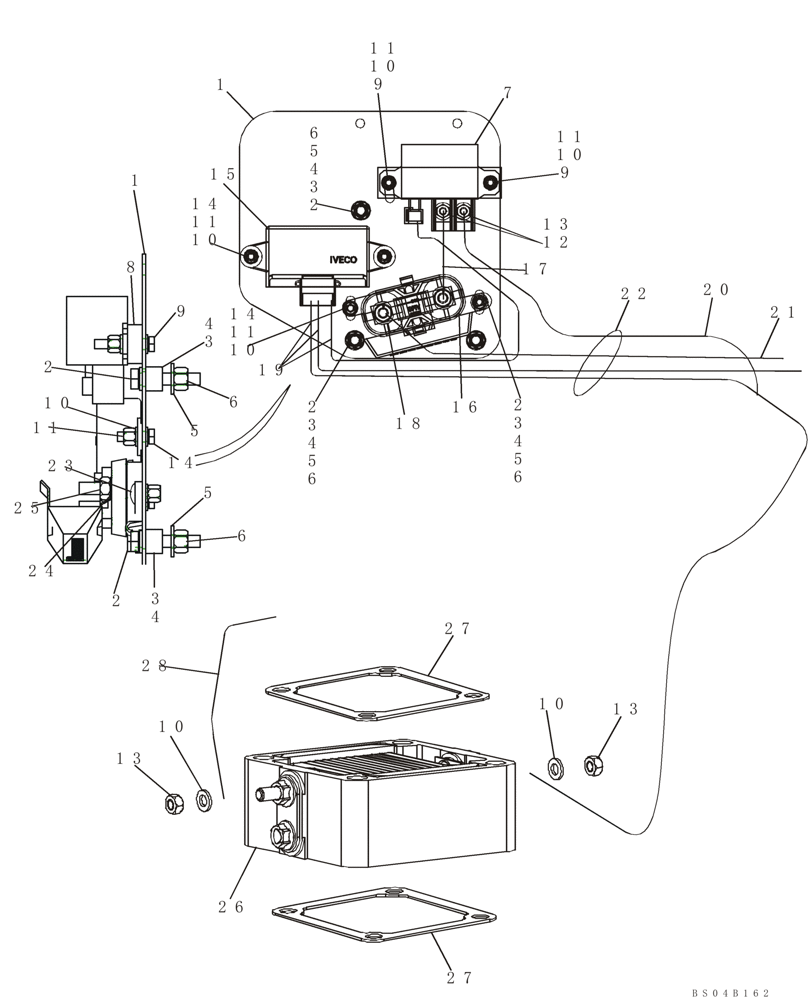

Схема запчастей Case 750K - (04-22) - GRID HEATER - SYSTEM CONTROL (W/O TEMP. SWITCH CONNNECTIONS; IF USED) (04) - ELECTRICAL SYSTEMS
14
13
2
9
27
11
6
24
4
1
18
9
9
14
25
15
2
21
6
6
16
2
bs04b162
23
3
2
2
4
1
13
28
4
3
26
10
10
11
5
19
27
10
17
5
6
5
8
5
11
6
7
4
12
3
22
10
10
10
20
11
10
3
3
4
14
13
11
5

Артикул

Название

Примечание

Количество

1

87410603

PLATE

Grid Heater

1шт.

2

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

3

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

4

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

3шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

7

86619908

RELAY,12V, 150A

Cold Start

1шт.

8

87414237

PLATE,25mm W x 102mm L x 10mm Thk

Spacer, 10 mm

1шт.

9

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

14шт.

11

832-10406

NUT,M6 x 1, Cl 8

6шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

14

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

15

47132002

HEATER

1шт.

16

440038A1

JUNCTION BLOCK

Fuse Block

1шт.

17

87410265

BAR

90 mm Jumper Copper Plate; Fuse To Relay

1шт.

18

87410602

FUSE,300A, Blade

300 Amp

1шт.

19

87433544

WIRE HARNESS

Controller Harness, Grid Heater Control; Attaches To Engine Harness

1шт.

20

87442552

CABLE ASSY.

575 mm Wire; Relay To Grid Heater

1шт.

21

87419615

CABLE ASSY.

1250 mm Wire; Starter To Fuse Block

1шт.

22

D150521

CLAMP

1-2шт.

23

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Replaces 811-6016

1шт.

24

892-11008

LOCK WASHER,8mm ID

5шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

82017872

HEATER

Grid

1шт.

27

86014151

GASKET,93mm L x 98mm L

Grid Heater

2шт.

28

87413162

GROUND STRAP

150 mm Ground Wire

1шт.

Выбрано товаров: 28
