Запчасти Case 750K (04-06) - BATTERY, DUAL - CANOPY, ROPS AND CAB (IF USED) (04) - ELECTRICAL SYSTEMS

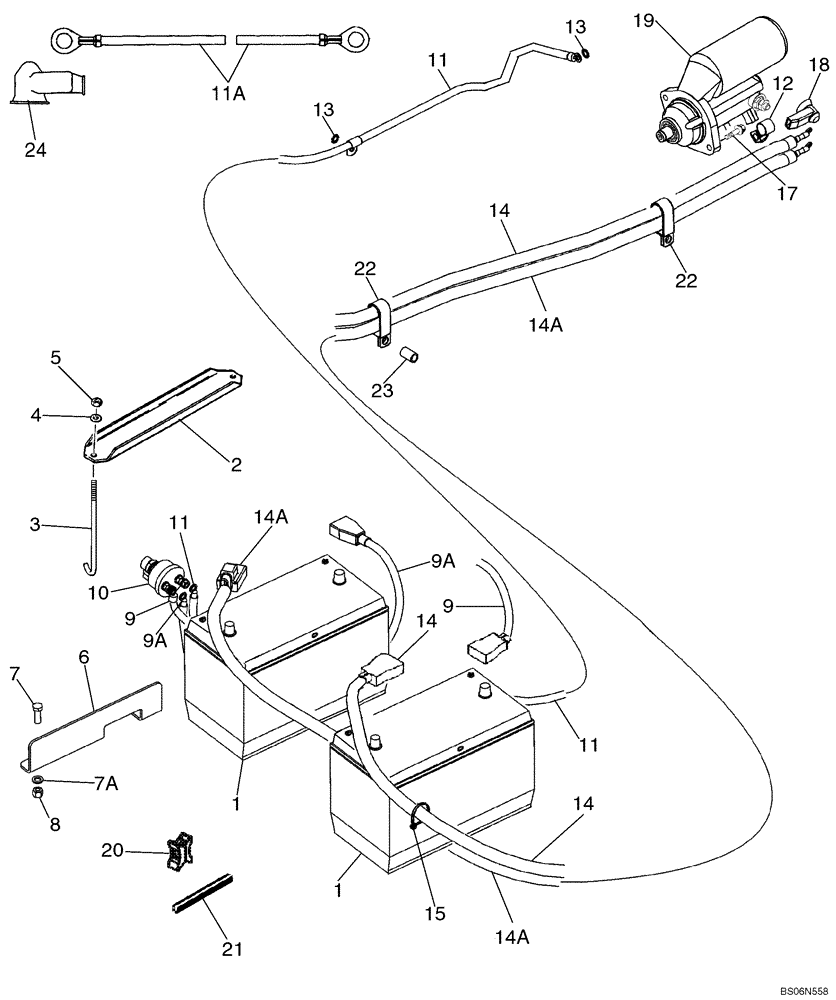

Схема запчастей Case 750K - (04-06) - BATTERY, DUAL - CANOPY, ROPS AND CAB (IF USED) (04) - ELECTRICAL SYSTEMS
3
14a
22
5
14
23
9
2
14a
7
4
9
11
1
14
8
9a
6
11
14a
7a
20
10
24
21
22
11
18
1
11a
14
19
15
13
12
13
9a
17

Артикул

Название

Примечание

Количество

1

A180406

BATTERY

Wet, BMF31EW; 12V

2шт.

2

R46490

BRACKET

1шт.

3

416297A1

ROD

2шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

417789A1

ANGLE

2шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

86982902

NEG BATTERY CABLE

1167 mm (46 in)

1шт.

9a

86982902

NEG BATTERY CABLE

1167 mm (46 in)

1шт.

10

87409316

SWITCH

Master Disconnect; Component Parts Not Serviced Separately; Replaces R52278

1шт.

11

86982704

GROUND CABLE

Negative, 1956 mm (77 in); Engine to Frame; Includes Clamp; If Used

1шт.

11a

87533236

GROUND CABLE

W/ 2 Eyelet Terminals, 345 mm (13.5 In); Engine To Frame; If Used

1шт.

12

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

13

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

14

R57564

CABLE

Positive, 2261 mm (89 in)

1шт.

14a

432901A1

CABLE ASSY.

Positive, 2660 mm (104-3/4 in)

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

2шт.

18

L126713

BOOT

1шт.

19

86992395

STARTER MOTOR,12V, 2.7kW

See Figure 04-01

1шт.

19

86992395R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

19

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

20

86982400

SPACER

Nylon Mount

2шт.

21

D40442

MOLDING

Trim, 12 in; No Longer Available, Cut From F42827

1шт.

22

242999A1

CLAMP

2шт.

23

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

3/4 tube

1шт.

24

87620402

BOOT

Black Electrical Boot

2шт.

F42827

TRIM,2946.4mm L

Bulk, 116 in

1шт.

Выбрано товаров: 30
