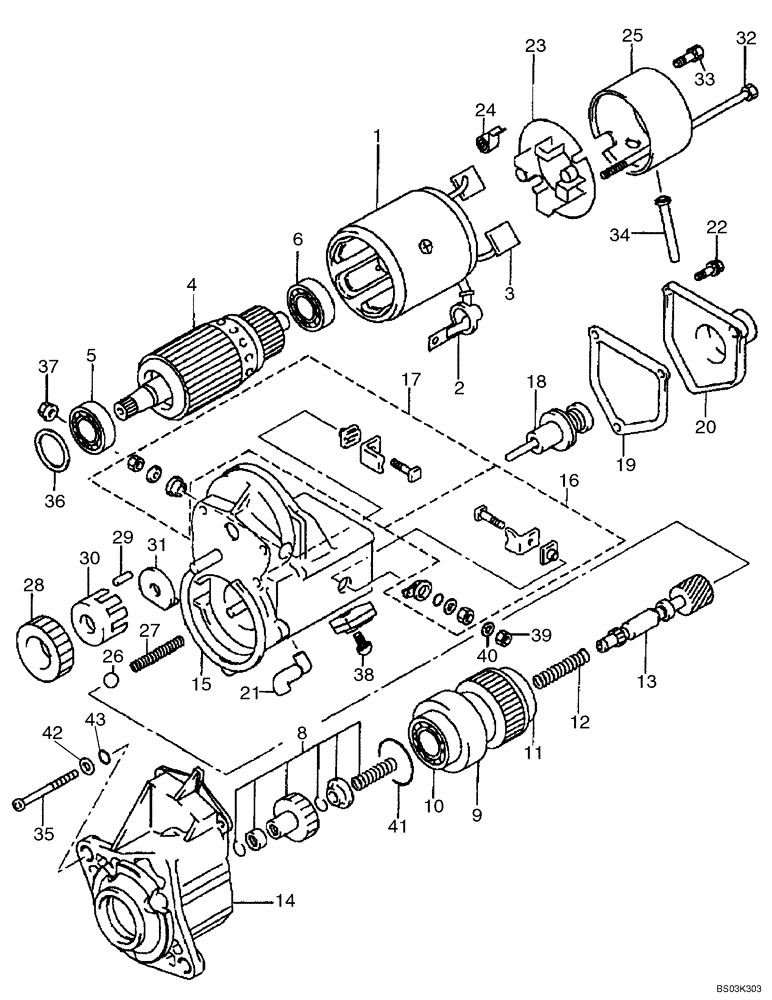

Запчасти Case 750K (04-01) - STARTER (04) - ELECTRICAL SYSTEMS

86992395

STARTER MOTOR,12V, 2.7kW

12 V, 2.7 kw; Incl. Ref 1 - 43

1шт.

86992395R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

1

87438992

STATOR

Housing, Yoke; Incl. Ref 2, 3

1шт.

2

87438993

HOUSING

Ring

1шт.

3

87438925

COMMUTATOR BRUSH

Brush Kit

2шт.

4

87438926

ARMATURE

Armature; Incl. Ref 5, 6

1шт.

5

87438927

BALL BEARING

Ball Bearing, 35 mm OD

1шт.

6

87438928

BALL BEARING

Ball Bearing, 30 mm OD

1шт.

87438994

CLUTCH ASSEMBLY

Clutch; Incl. Ref 8 - 13

1шт.

8

87438929

KIT, STARTER MTR REP

Clutch Pinion Kit

1шт.

9

87438930

KIT, STARTER MTR REP

Clutch Assembly; Incl. Ref 10, 11

1шт.

10

87438931

BALL BEARING

Ball Bearing, 47 mm OD

1шт.

11

87438932

BALL BEARING

Ball Bearing, 47 mm OD

1шт.

12

87438933

COMPRESSION SPRING

Compression Spring

1шт.

13

87438935

SHAFT

Clutch Shaft

1шт.

14

87438937

HOUSING

Housing

1шт.

15

87438940

SOLENOID

Magnetic Switch Assembly; Incl. Ref 16 - 22

1шт.

16

87438941

KIT, STARTER MTR REP

Terminal M

1шт.

17

87438942

KIT, STARTER MTR REP

Terminal C

1шт.

18

87438944

PLUNGER ASSY.

Plunger

1шт.

19

87438946

GASKET

Solenoid Switch Gasket

1шт.

20

87438948

COVER

Solenoid Cover

1шт.

21

87438995

BUSHING

Bushing, Drain

1шт.

22

87438950

BOLT

Bolt With Washer; M5 x 14

3шт.

23

87438996

HOLDER

Brush Holder; Incl. Ref 24

1шт.

24

87438997

SPRING

Brush Tension Spring

4шт.

25

87438999

COVER

Housing

1шт.

26

87439000

BALL

Ball

1шт.

27

87439001

COMPRESSION SPRING

Compression Spring

1шт.

28

87439002

GEAR

Pinion

1шт.

29

87439003

ROLLER

Roller, Clutch

5шт.

30

87439004

RETAINER

Retainer

1шт.

31

87439005

RETAINER

Snap Retainer

1шт.

32

87438951

BOLT

M6 x 182 Bolt

2шт.

33

87439006

CAPTIVE WASHER SCREW,Phil Pan Hd, M5 x 9.40mm

Bolt With Washer; M5 x 9.4

2шт.

34

87439007

BUSHING

Bushing, Drain

1шт.

35

87439008

SCREW,Sl Pan Hd, M6 x 70mm

Adapter Screw, M6 x 70

3шт.

36

87438954

WASHER

Felt Washer

1шт.

37

87439009

NUT

M10 Nut

1шт.

38

87438956

BOLT

M5 x 10 Bolt

1шт.

39

100016

NUT,M10 x 1.5, Cl 8

1шт.

40

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

41

87439010

SEAL,2.4mm Thk x 47.2mm ID

Seal

1шт.

42

87439061

WASHER

Washer, 9/32 x 1/2 x 3/64

3шт.

43

87439011

O-RING

O-Ring, 4.8 ID

3шт.
