Запчасти Case 750K (03-10) - FUEL FILTER (03) - FUEL SYSTEM

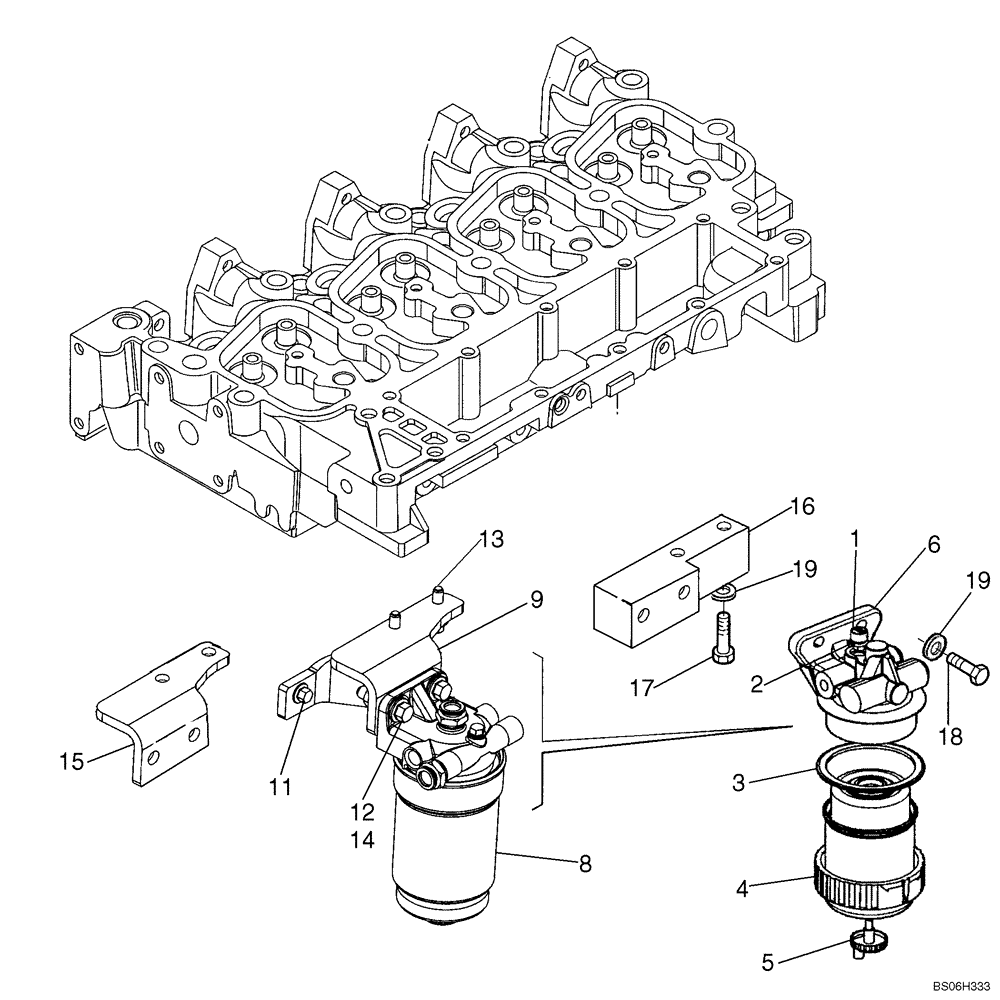

Схема запчастей Case 750K - (03-10) - FUEL FILTER (03) - FUEL SYSTEM
8
1
9
3
6
17
19
4
19
18
15
14
2
12
16
13
5
11

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Used With Stanadyne Fuel Filter; If Used

1шт.

2854621

FUEL FILTER

FILTER ASSY; Incl. Ref 1- 6

1шт.

1

87840178

PLUG

Air Vent

1шт.

2

87840177

O-RING

1шт.

3

87840171

SEAL

1шт.

4

87840170

LOCKING RING

1шт.

5

NSS

NOT SOLD SEPARAT

Valve Drain

1шт.

6

NSS

NOT SOLD SEPARAT

Header Assy, Fuel Filter

1шт.

REF

INSTRUCTION

Used With Filtrauto Fuel Filter Grp; If Used

1шт.

8

2852547

FILTER ASSY

1шт.

9

2855103

SUPPORT

1шт.

11

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

12

2852235

SCREW

Screw, M10 x 1.5 x 35; Replaces 4899849

2шт.

13

2830411

BOLT,Flng, M8 x 1.25 x 30mm

M8 x 1.25 x 30

2шт.

14

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

M10 x 1.5

2шт.

15

2852099

SUPPORT

1шт.

16

2854620

BRACKET

Support, No Longer Available; Order 2852099, Ref 15

1шт.

17

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Replaces 4899020, 16 mm

2шт.

18

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

Replaces 16044221

2шт.

19

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

20

87803194

FUEL FILTER

Case Brand

1шт.

Выбрано товаров: 21
