Запчасти Case 750K (03-09) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

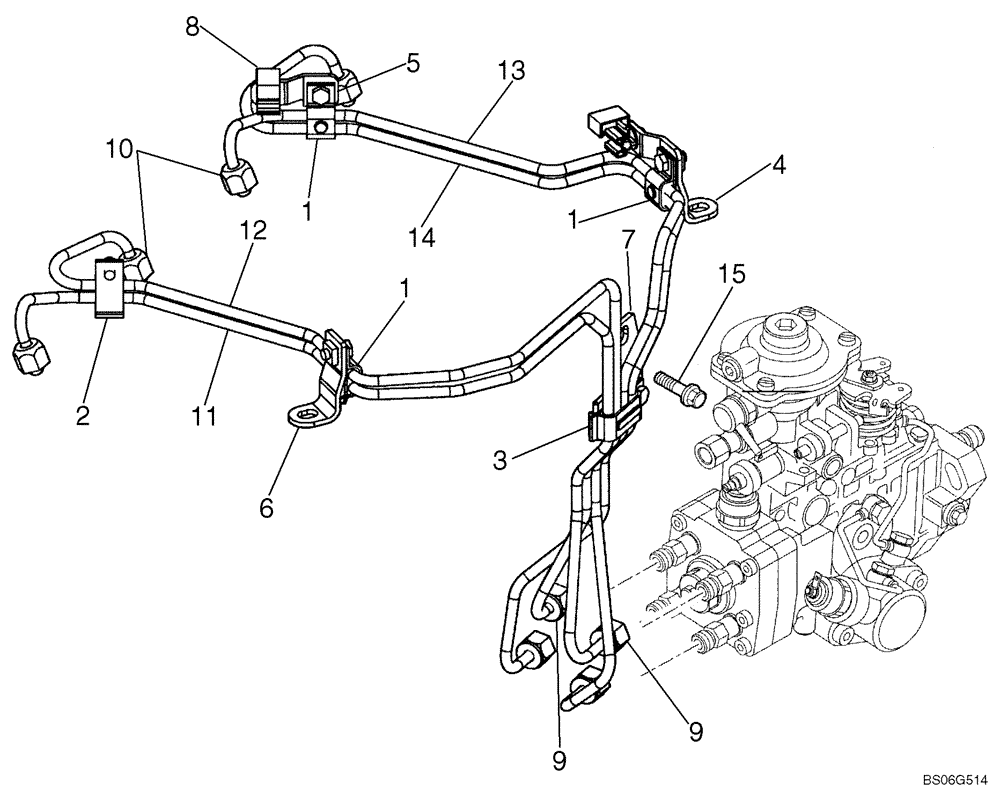

Схема запчастей Case 750K - (03-09) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM
9
10
5
1
15
7
12
2
14
4
6
13
8
1
9
11
3
1

Артикул

Название

Примечание

Количество

2852075

PIPE SET

Fuel Injection Supply Pipe Assy; Incl. Ref 1-14

1шт.

1

2852871

BRACKET

Fuel Injection Pipe Bracket

3шт.

2

2852872

BRACKET

Fuel Injection Pipe Bracket

1шт.

3

2852873

BRACKET

Fuel Injection Pipe Bracket

1шт.

4

2852874

BRACKET

Fuel Injection Pipe Bracket

1шт.

5

2852875

BRACKET

Fuel Injection Pipe Bracket

1шт.

6

2852876

BRACKET

Fuel Injection Pipe Bracket

1шт.

7

2852877

BRACKET

Fuel Injection Pipe Bracket

1шт.

8

2852878

CLAMP BRACKET

Fuel Injection Pipe Bracket (Not Serviced Separately)

2шт.

9

NSS

NOT SOLD SEPARAT

Hex Nut

4шт.

10

NSS

NOT SOLD SEPARAT

Hex Nut

4шт.

11

NSS

NOT SOLD SEPARAT

Fuel Injector Supply Pipe (Not Serviced Seperately)

1шт.

12

NSS

NOT SOLD SEPARAT

Fuel Injector Supply Pipe (Not Serviced Seperately)

1шт.

13

NSS

NOT SOLD SEPARAT

Fuel Injector Supply Pipe (Not Serviced Seperately)

1шт.

14

NSS

NOT SOLD SEPARAT

Fuel Injector Supply Pipe (Not Serviced Seperately)

1шт.

15

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

Replaces 4899068

1шт.

Выбрано товаров: 16
