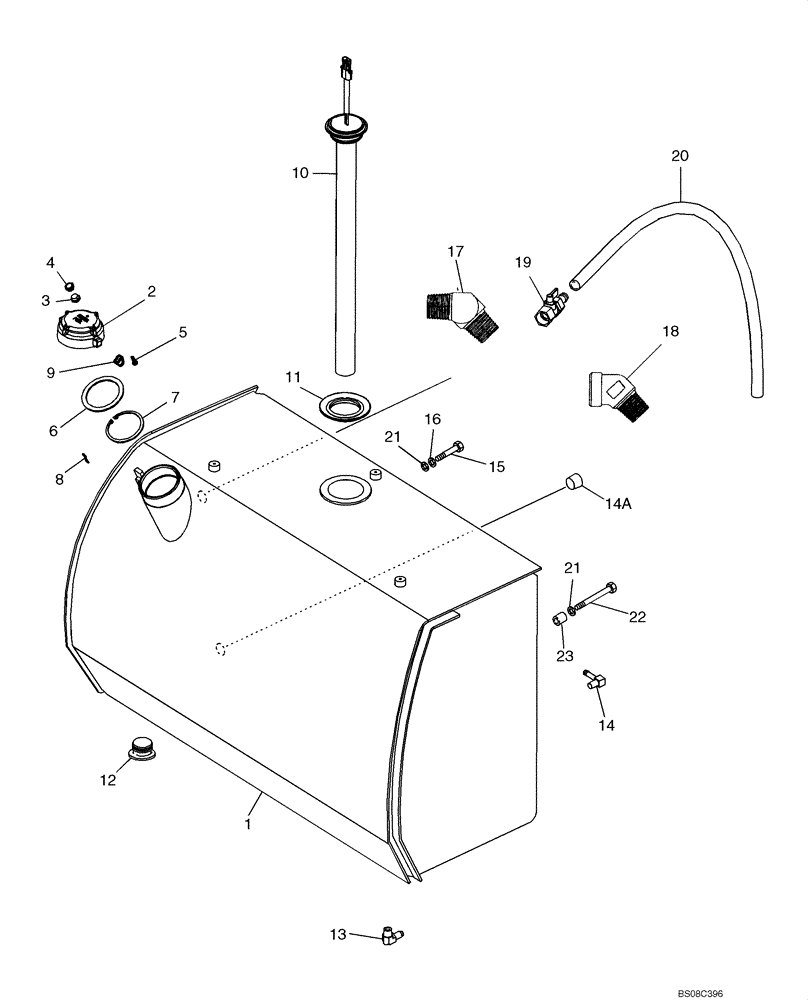

Запчасти Case 750K (03-04A) - FUEL TANK (IF USED) (03) - FUEL SYSTEM

REF

INSTRUCTION

DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANKS; THIS HAS THEM; FOR OTHER OPTIONS SEE FIGURE 03-04

1шт.

1

87644054

FUEL TANK

TANK, Fuel, Complete; Incl Ref 2 - 14A

1шт.

2

R57981

FILLER CAP

Incl. Ref 3 - 5

1шт.

3

A50096

VALVE

Relief; Use With Loctite 592

1шт.

4

R57888

FILTER

Use With 345-147, Sealant

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

Use with Loctite No. 243

1шт.

6

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

Rubber

1шт.

7

103-21300

SNAP RING,3.00", Int, #300

1шт.

8

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

9

R48634

FASTENER

Hook

1шт.

10

326277A2

SENSOR

Fuel Level; No Longer Used On This Model For Service Order Ref. 10A

1шт.

10a

87497048

SENSOR

Fuel Level, Longer Sensor, Not Illustrated

1шт.

11

255095A1

GROMMET

1шт.

12

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

Drain; Use With Loctite 592

1шт.

13

86977972

FITTING,90 Degree, 1/2" Hose x 3/4"-16 ORB Beaded

1шт.

14

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Brass; Use With Loctite 592

1шт.

14a

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

15

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

17

217-1209

ELBOW

45 Degrees, 1/2-14 Male

1шт.

18

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

1шт.

19

86984713

SHUT-OFF VALVE

1шт.

20

87413240

HOSE ASSY.

Drain

1шт.

21

D44330

SHIM,.031" Thk

Washer

4шт.

22

814-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 8.8

3шт.

23

87440363

SPACER,17.5mm ID x 34.9mm OD x 29mm L

Spacer

3шт.
